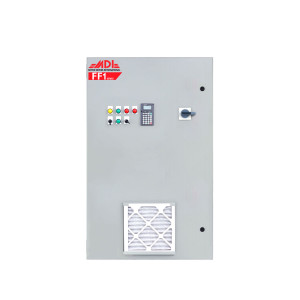

Only 12†wide, the SV1 is our slimmest standard enclosed VFD panel. With a durable Mitsubishi Variable Frequency Drive, circuit breaker, options for many control protocols, and 3% line reactors, the SV1 is a smart choice for HVAC and pumping applications.
Manufacturer
Motor Drives International
Series
SV1
Model
MSV14040HA1130
Condition
New
1 Year Manufacturer Warranty
Horsepower
40HP
Maximum Amps
50A
Overload Rating
110% for 60 seconds (40°C)
120% for 60 seconds (40°C)
Input
3-Phase
380 to 480V
Output
3-Phase
380 to 480V
Enclosure
NEMA 1
Features
Wall Mountable
Circuit Breaker
3% Line Reactor
3 Contactor Bypass Arrangement
Dimensions
Height: 48.00 in
Width: 12.00 in
Depth: 13.00 in
