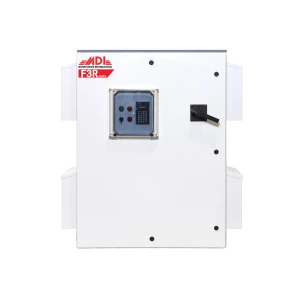

40HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MFF14040HA0040

Brand: Motor Drives International
Model: MFF14040HA0040
Condition: New
Rating:
0% of 100

Out of stock

Highlights

  • Wall mountable or floor mountable NEMA 1 enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
  • Technical Specifications
    Brand Motor Drives International
    Horsepower Rating 40 HP
    Rated Voltage 460 V
    Phase Three Phase
    Series FF1
    Circuit Breaker Yes
    System Amps 62 A
    Output Voltage 460 V
    Product Condition New
    Enclosure Rating UL Type 1
    Mounting Type Wall Mountable
    Rated Amps 62 A
    Model MFF14040HA0040
    Warranty 1 Year Manufacturer Warranty
    Product Information

    Motor Drives International FF1 Series

    The FF1 Motor Control Panel

    Powerfully engineered, the FF1 enclosed VFD panel is both reliable and versatile in design. The FF1 is a force filtered ventilated, all-in-one drive panel available in sizes up to 800HP. With the consistent power and flexibility the FF1 can supply, it a suitable choice for a variety of applications such as fans, pumps, and more.

    Highlights

  • Wall mountable or floor mountable NEMA 1 enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
  • Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    FF1

    Model
    MFF14040HA0040

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    40HP

    Maximum Amps
    62A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    380 to 480V

    Output
    3-Phase
    380 to 480V

    Enclosure
    NEMA 1

    Features
    Wall Mountable
    Circuit Breaker
    Advanced Keypad

    Dimensions
    Height: 48.00 in
    Width: 36.00 in
    Depth: 16.00 in
