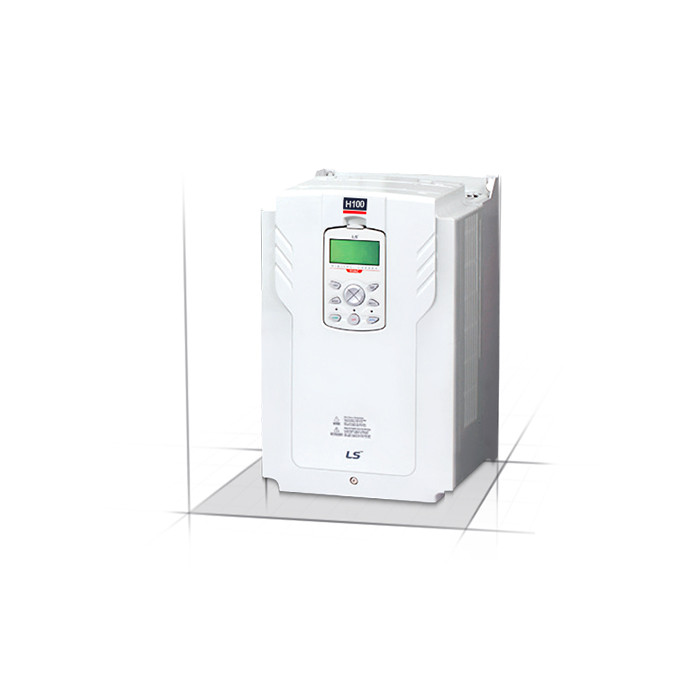

40HP 460V LS Electric H100 VFD, Inverter, AC Drive LSLV0300H100-4COFN (67310035PL)

40HP 460V LS Electric H100 VFD, Inverter, AC Drive LSLV0300H100-4COFN (67310035PL)

Brand:
LS
Model:
67310035PL
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
List Price:  $3,468.94
Online Price: $2,601.71
Adding to cart… The item has been added
  • Specialized function for HVAC
  • V/f control
  • Built-in BACnet communication
  • LonWorks (Option)
  • Keypad Exclusive for HVAC
  • Built-in EMC filter/DC Reactor
  • Side by Side Installation
  • Heatsink out the back installation
  • Enhanced Size Competitiveness
  • Capacitor/Fan Life Cycle Management Function
Free shipping over $50*
Write a Review

Technical Specifications

Model:
LSLV0300H100-4COFN
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
H100
Horsepower Rating:
40 HP
HP Rating @ 120% OL:
40 HP
Rated Amps:
61 A
Amp Rating @ 120% OL:
61 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
61 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Height:
13.78 in
Width:
8.66 in
Depth:
8.79 in

Product Information

LS H100 Series

67310035PL
Download Manual
