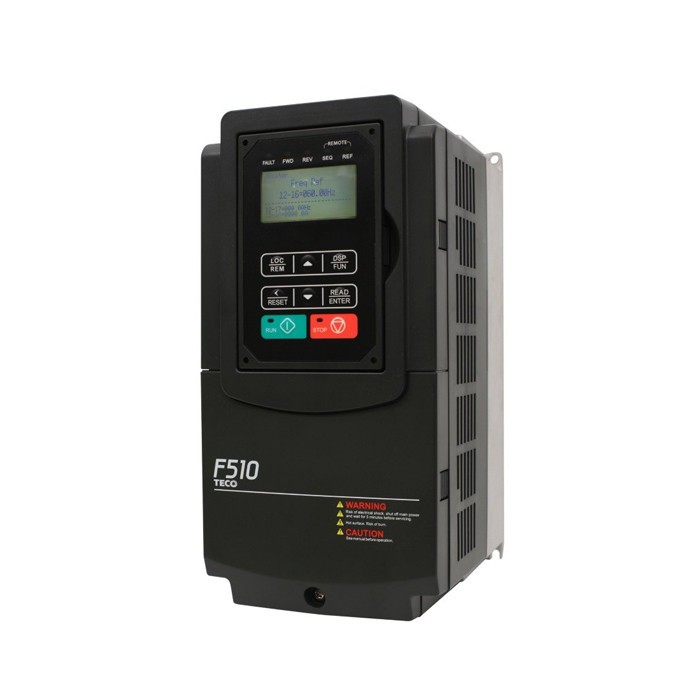

40HP 230V Teco F510 VFD, Inverter, AC Drive F510-2040-C3 (F510-2040-C3)

40HP 230V Teco F510 VFD, Inverter, AC Drive F510-2040-C3 (F510-2040-C3)

Brand:
TECO
Model:
F510-2040-C3
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Ideal product for fan and centrifugal pump applications:
    • HVAC
    • Wastewater industries
    • Cooling towers
    • Industrial pumping
    • Irrigation
  • Built-in pump cascade control for up to 4 pumps
    • Option card for control of up to 8 pumps
  • Two separate PID loop controls
  • Switch between PID loops based on input signal or real-time clock setting
  • Extensive monitoring and display capabilities
  • Real time clock built-in (RTC)
  • Conformal coating of all printed circuit boards (non-hazardous)
  • Plenum Rated
  • Built-in Modbus RTU, BACnet MS/TP, or Metasys (N2) communications via on-board RS485 or RJ45 connection
  • Built-in PLC functionality
  • Scalable process parameters to engineering units
  • Digital I/O
    • 6 Configurable digital inputs
    • 3 Configurable digital relay outputs
    • Dedicated hardware safety input for user's emergency interface
  • Analog I/O
    • 2 Analog inputs and outputs
    • PTC input
  • Pulse input and pulse output signals capable of up to 32 khz
  • 3 modes of auto tuning to best adapt the F510 with the applied motor
  • Controls induction or permanent magnet motors
  • 100 Mhz RISC process for ultra-high speed computations and rapid loop-time updates
Write a Review

Technical Specifications

Product Information

TECO F510 Series

The F510 Fan and Pump AC Drive is an easily configured and versatile drive product that will control almost any application involving fans, blowers, and centrifugal pumps. It comes standard with a simple-to-select preset application parameter for commonly applied fan and pump applications. A preset application menu designed to simplify start-up is provided for the following applications: pump, HVAC, exhaust fan.

Standard Features

  • Control Modes for V/F, and Sensorless Vector
  • Simple PLC Function Built-in
  • .5 to 20 HP (CT), 230V, 50/ 60Hz, 3-Phase
  • 1 to 25 HP (CT), 460V, 50/ 60Hz, 3-Phase
  • Conformal Coating on PC Boards
  • LED Keypad with 5 Digits
  • Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
  • 0 to 599 Hz Speed Range
  • PID Control
  • Diagnostics Registers for Troubleshooting
  • Built-in Modbus Protocol via (RJ45 Interface)
  • Dedicated Pulse Follower Signal
  • UL, cUL, and CE Approved
