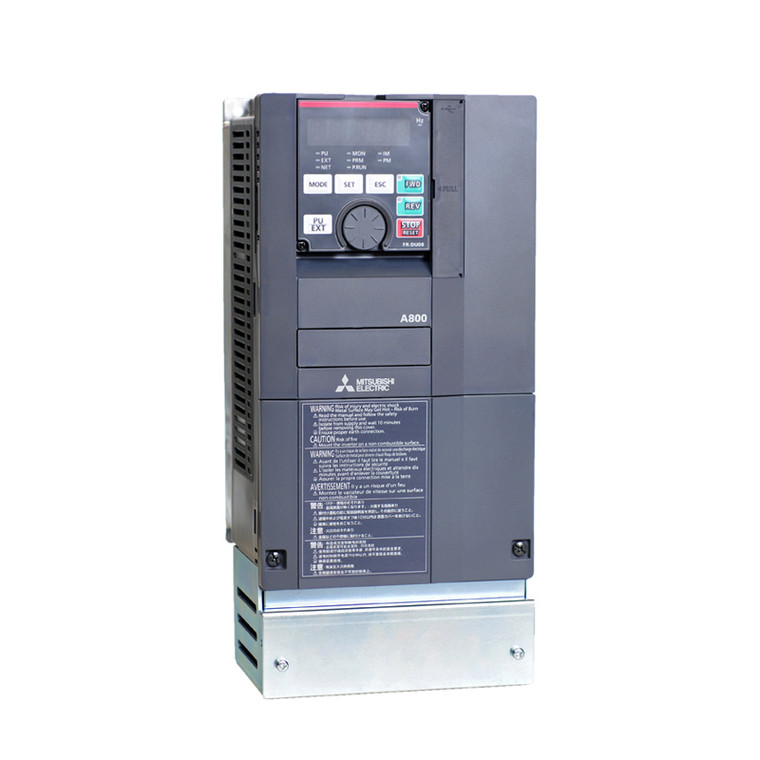

40HP 460V Mitsubishi A800E VFD, Inverter, AC Drive FR-A840-00620-E1N6 (FR-A840-00620-E1N6)

Brand:
MITSUBISHI
Model:
FR-A840-00620-E1N6
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $7,545.00
Adding to cart… The item has been added
  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.

Technical Specifications

Model:
FR-A840-00620-E1N6
Brand:
MITSUBISHI
Product Condition:
New
HP Rating @ 110% OL:
40 HP
HP Rating @ 120% OL:
40 HP
HP Rating @ 150% OL:
30 HP
HP Rating @ 200% OL:
25 HP
Amp Rating @ 110% OL:
62 A
Amp Rating @ 120% OL:
57 A
Amp Rating @ 150% OL:
44 A
Amp Rating @ 200% OL:
38 A
Output Voltage:
460 V
Output Amperage Rating:
62 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Frame Size:
F
Constant Torque / Variable Torque:
Variable Torque
Horsepower Rating:
25 HP
Horsepower Rating:
30 HP
Horsepower Rating:
40 HP
Rated Amps:
31 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Enclosure Rating:
UL Type 1
Height:
20.40 in
Width:
9.80 in
Depth:
7.50 in

Product Information

MITSUBISHI A800E Series

CT INVERTER 30HP(ND) 480V W/ETHERNET

Highlights

  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
