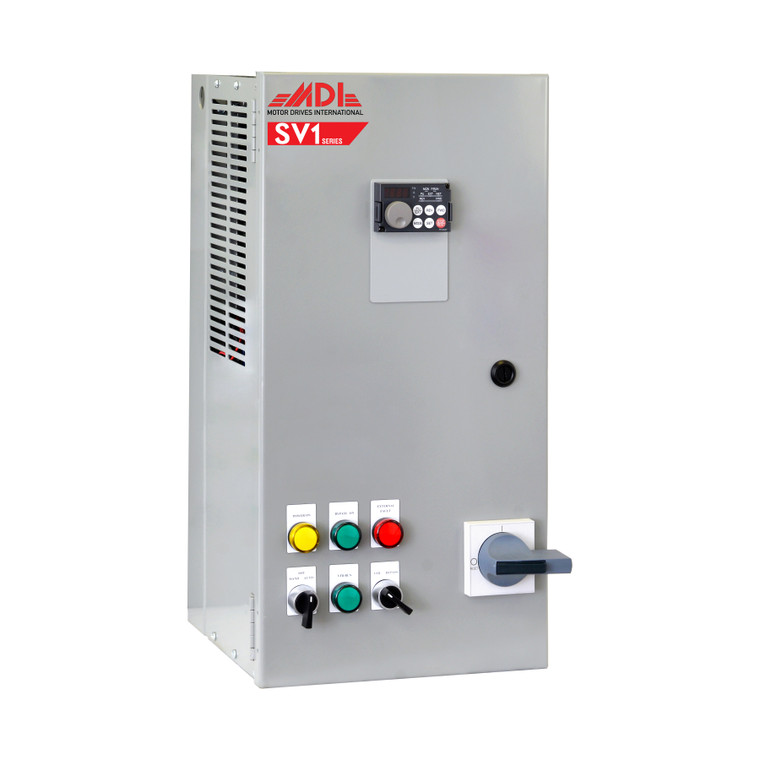

3HP 208V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MSV12003HA0130 (MSV12003HA0130)

3HP 208V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MSV12003HA0130 (MSV12003HA0130)

Brand:
Motor Drives International
Model:
MSV12003HA0130
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $4,146.93
Online Price: $3,110.93
Adding to cart… The item has been added
  • Slim wall mountable NEMA 1 design
  • Mitsubishi F700 (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Full function keypad (advanced keypad available)
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
    • Write a Review

    Technical Specifications

    Product Information

    Motor Drives International SV1 Series

    The SVI Motor Control Panel

    Only 12” wide, the SV1 is our slimmest standard enclosed VFD panel. With a durable Mitsubishi Variable Frequency Drive, circuit breaker, options for many control protocols, and 3% line reactors, the SV1 is a smart choice for HVAC and pumping applications.

    Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    SV1

    Model
    MSV12003HA0130

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    3HP

    Maximum Amps
    10.5A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    200 to 240V

    Output
    3-Phase
    200 to 240V

    Enclosure
    NEMA 1

    Features
    Wall Mountable
    Circuit Breaker
    3% Line Reactor

    Dimensions
    Height: 24.00 in
    Width: 12.00 in
    Depth: 11.00 in
