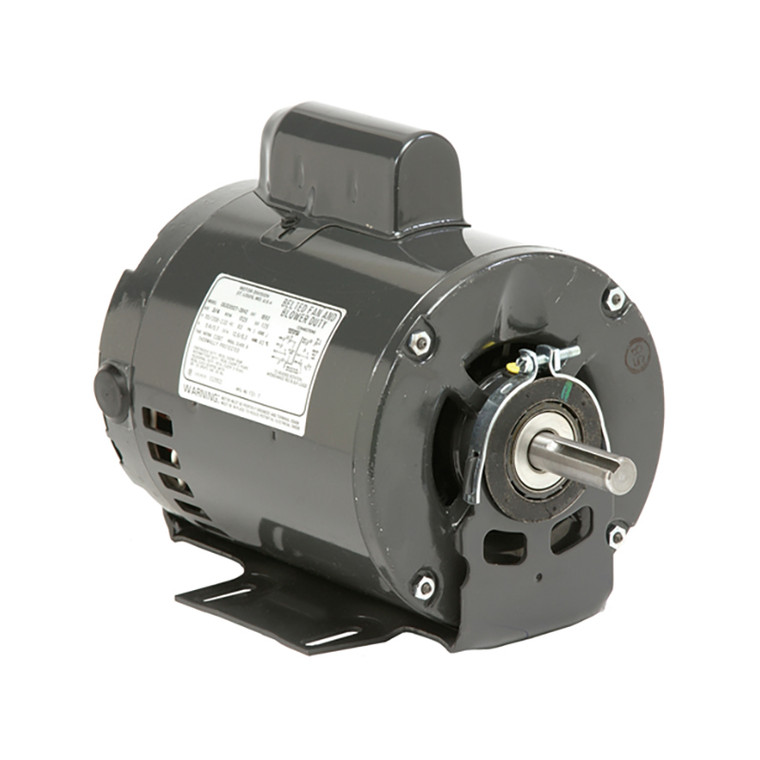

US Motors (Nidec), AC Motor, 3187C, 1 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56 (3187C)

US Motors (Nidec), AC Motor, 3187C, 1 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56 (3187C)

Brand:
US Motors (Nidec)
Model:
3187C
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
3187C
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
48.71
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.25
Insulation Class:
A
Duty Cycle:
Continuous
C Dimension:
11.8
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
14.0/7.0 A

Product Information

US Motors (Nidec) Series

1 HP, 1725 RPM, 3187C, 115/208-230 V, 60 HZ, 56
