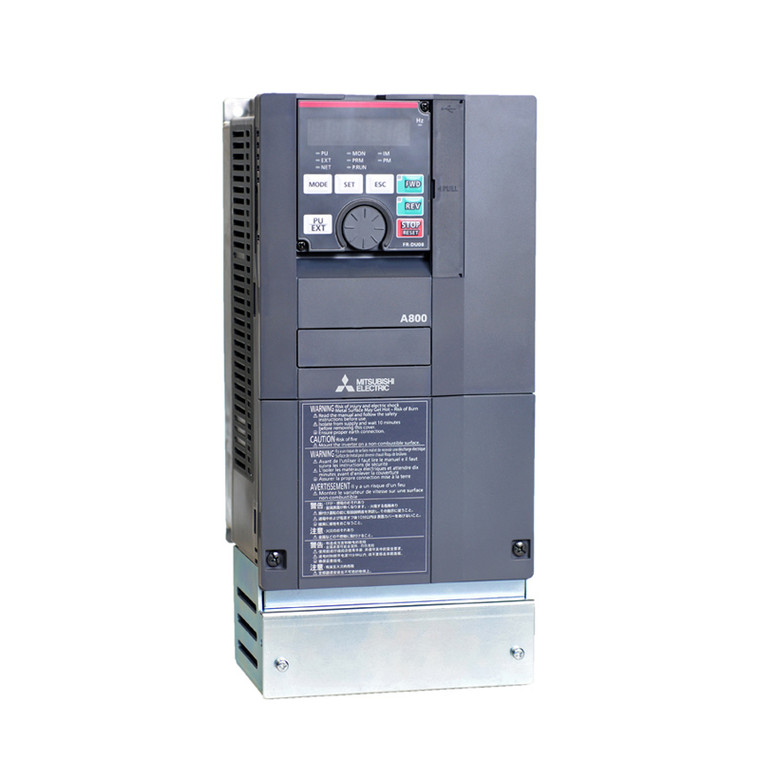

300HP 460V Mitsubishi A800E VFD, Inverter, AC Drive FR-A840-03610-E1U6 (FR-A840-03610-E1U6)

Brand:
MITSUBISHI
Model:
FR-A840-03610-E1U6
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $18,505.00
Online Price: $17,966.00
Adding to cart… The item has been added
  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.

Technical Specifications

Model:
FR-A840-03610-E1U6
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
150 HP
Horsepower Rating:
200 HP
Horsepower Rating:
250 HP
Horsepower Rating:
300 HP
HP Rating @ 110% OL:
300 HP
HP Rating @ 120% OL:
250 HP
HP Rating @ 150% OL:
200 HP
HP Rating @ 200% OL:
150 HP
Rated Amps:
216 A
Amp Rating @ 110% OL:
361 A
Amp Rating @ 120% OL:
325 A
Amp Rating @ 150% OL:
260 A
Amp Rating @ 200% OL:
216 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
361 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Frame Size:
L
Series:
A800E
Rated Amps:
260 A
Rated Amps:
325 A
Rated Amps:
361 A
Height:
29.10 in
Width:
18.30 in
Depth:
14.20 in

Product Information

MITSUBISHI A800E Series

CT INVERTER 200HP(ND) 480V W/ETHERNET
