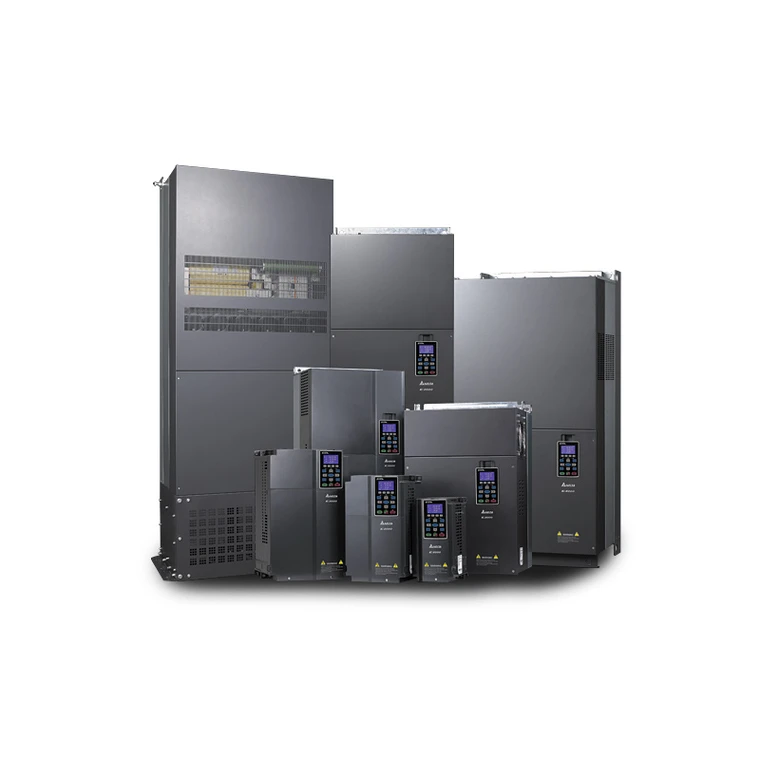

375HP & 300HP 460V Delta C2000 VFD, Inverter, AC Drive VFD2800C43A

Brand: Delta
Model: VFD2800C43A
Condition: New
Rating:
0% of 100

In stock
List Price $31,197.00 Online Price $15,598.50

Highlights

  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4-quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built-in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)
Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Rated Input Frequency 60 Hz
Constant Torque / Variable Torque Variable Torque/Constant Torque
Series C2000
Phase Three Phase
Rated Amps 523 A, 550 A
Enclosure Rating IP 20
Frame Size H1
Brand Delta
Horsepower Rating 300 HP, 375 HP
Rated Voltage 460 V
Product Condition New
Output Voltage 460 V
Output Amperage Rating 550 A
HP Rating @ 120% OL 375 HP
HP Rating @ 150% OL 300 HP
Amp Rating @ 110% OL 550 A
Amp Rating @ 120% OL 550 A
Amp Rating @ 150% OL 523 A
Model VFD2800C43A
Height 56.5 in
Width 27.56 in
Depth 15.67 in
Warranty 2 Year
Product Information

Delta C2000 Series

Powerful Features. High Efficiency. The C2000 Series AC motor drive provides the most efficient solution for all types of drive applications. It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors. The C2000 Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange.

Highlights

  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4-quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built-in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)

Standard Features

Drive Details

Manufacturer
Delta

Series
C2000

Model
VFD2800C43A

Condition
New Surplus

Constant/Variable Torque
CT/VT

Horse Power
375HP

Maximum Amps
CT: 523A
VT: 550A

Input
3 Phase
380 to 480V at 50/60Hz

Output
3 Phase
380 to 480V at 50/60Hz

Enclosure
IP00

Dimensions
Height: 56.50 in
Width: 27.56 in
Depth: 15.67 in
