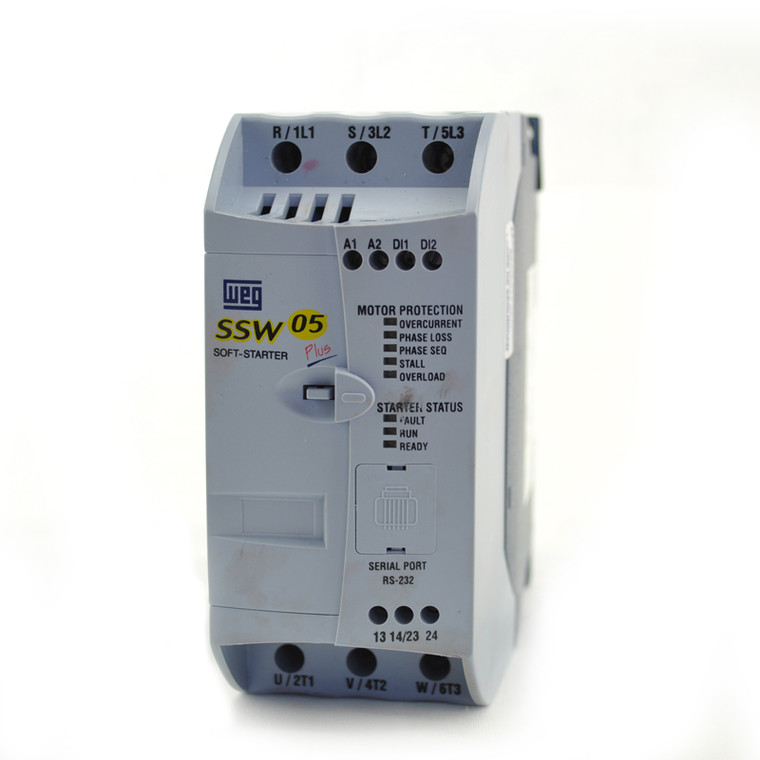

20HP at 460V, 10HP at 230V, WEG Soft Starter, SSW050030T2246EPZ

Brand: WEG
Model: SSW050030T2246EPZ
Condition: New
Rating:
0% of 100
0 customer review
In stock
List Price $754.00 Online Price $379.99
FREE SHIPPING OVER $50*
Add to Wish List Add to Comparison
Write a Review

Kit Includes:

Highlights

  • 208 - 480V, 50/60Hz input power supply
  • Duty cycle: 300% rated current during 10 seconds, 4 starts per hour
  • Built-in bypass
  • One digital input for Start/Stop (90 - 250 Vac)
  • One digital input for Fault Reset (90 - 250 Vac)
  • One relay output for Run indication (1 Amp - 250V)
  • One relay output for Full Voltage indication (1 Amp - 250V)
  • RS-232 serial port
  • Adjustable acceleration and deceleration ramps (1 - 20 seconds)
  • Adjustable pedestal voltage (30 - 80% of line voltage)
  • Protective features: Motor overload, over current and locked rotor, SCR overload, phase loss and phase sequence
  • DIN rail or direct mount
  • Ambient: 32ºF (0ºC) to 131ºF (55ºC), 3300ft (1000m) altitude, 90% non-condensing humidity
    • See Technical Specifications
    Technical Specifications
    Rated Amps 30 A
    Brand WEG
    Product Condition New
    Model SSW050030T2246EPZ
    Product Information

    WEG Series

    A Cost-Effective Soft Starter with a Brand Name You Can Trust

    Highlights

  • 208 - 480V, 50/60Hz input power supply
  • Duty cycle: 300% rated current during 10 seconds, 4 starts per hour
  • Built-in bypass
  • One digital input for Start/Stop (90 - 250 Vac)
  • One digital input for Fault Reset (90 - 250 Vac)
  • One relay output for Run indication (1 Amp - 250V)
  • One relay output for Full Voltage indication (1 Amp - 250V)
  • RS-232 serial port
  • Adjustable acceleration and deceleration ramps (1 - 20 seconds)
  • Adjustable pedestal voltage (30 - 80% of line voltage)
  • Protective features: Motor overload, over current and locked rotor, SCR overload, phase loss and phase sequence
  • DIN rail or direct mount
  • Ambient: 32ºF (0ºC) to 131ºF (55ºC), 3300ft (1000m) altitude, 90% non-condensing humidity

    • Standard Features

    RVSS Details

    Manufacturer
    WEG

    Series
    SSW05

    Model
    SSW050030T2246EPZ

    Condition
    New

    Horse Power at 230V
    10 HP

    Horse Power at 460V
    20 HP

    Maximum Amps
    30 A

    Input
    3-Phase
    230-460V

    Output
    3-Phase
    230-460V

    Enclosure
    IP00

    Dimensions
    Height: 5.1 in
    Width: 2.3 in
    Depth: 5.7 in

    Download Manual
