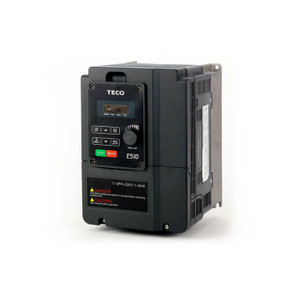

2HP 460V Teco E510 VFD, Inverter, AC Drive E510-402-H3N4-U (E510-402-H3N4-U)

Brand:
TECO
Model:
E510-402-H3N4-U
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • Areas in contact with corrosive solutions
  • Processing areas that require periodic wash-down:Corrosive, dusty, humid, or other dirty environmentsCorrosive, dusty, humid, or other dirty environments
    • Food
    • Beverage
    • Pharmaceuticals
  • Corrosive, dusty, humid, or other dirty environments

Technical Specifications

Model:
E510-402-H3N4-U
Brand:
TECO
Product Condition:
New
HP Rating @ 150% OL:
2 HP
Amp Rating @ 150% OL:
3.8 A
Output Voltage:
460 V
Output Amperage Rating:
3.8 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Constant Torque / Variable Torque:
Variable Torque
Horsepower Rating:
2 HP
Rated Amps:
3.8 A
Rated Voltage:
460 V
Enclosure Rating:
UL Type 4
Series:
E510
Height:
9.79 in
Width:
5.94 in
Depth:
7.20 in

Product Information

TECO E510 Series

The E510 NEMA 4/ 12 Variable Speed Drive is a versatile and compact AC Drive that can control today’s demanding motor driven applications in a cost effective manner. Further, the E510 provides an ideal solution for fans, pumps, mixing, and conveyors installed in non-ideal environments.

Standard Features

  • Power Range:
    • 230V, 1Ø (0.5 to 3 HP)
    • 230V, 3Ø (1 to 15 HP)
    • 460V, 3Ø (1 to 25 HP)
  • Parameters grouped by function
  • Built-in PLC Functionality
  • PID Process Control Loop
    • Sleep Mode
    • 0-10VDC or 4-20mA Feedback
    • Loss of feedback or tracking detection
  • Built-in Modbus Protocol (RJ45 Interface)
  • 5 Digit operator’s keypad
    • Scalable Display
    • Programming parameters
    • Diagnostics monitoring
  • Built-in Disconnect and Speed Pot on selected models
    • 230V, 1Ø (0.5 to 3 HP)
    • 460V, 3Ø (1 to 15 HP)
  • Digital and Analog Inputs and outputs have extremely fast (~4 msec) update time
  • Auto Run Mode (cyclic operation)
  • Power loss ride through
  • Automatic Voltage Regulation (AVR) Stabilizes output voltage against fluctuation input voltage
