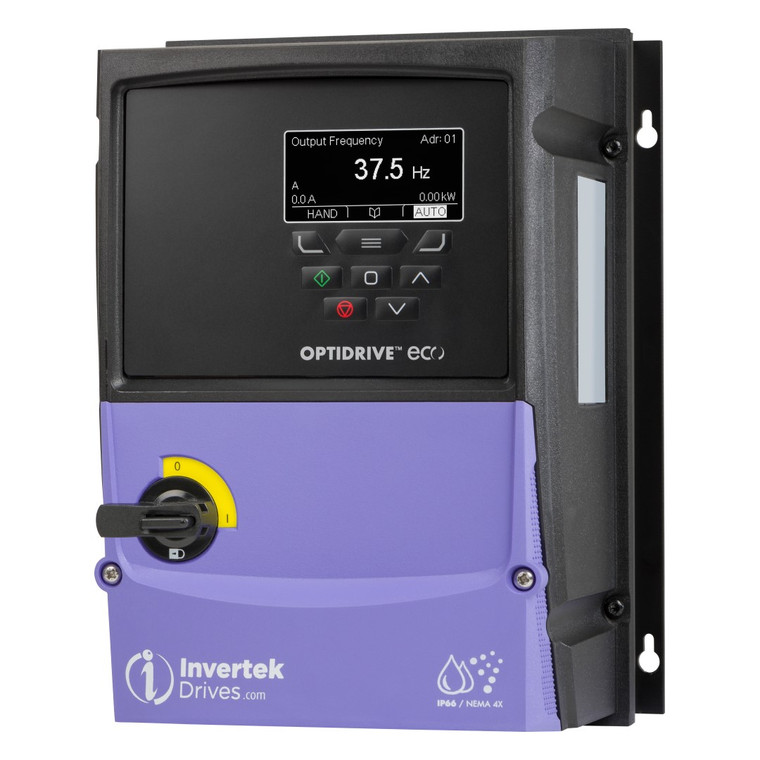

2HP 460V Invertek OptiDrive Eco VFD, Inverter, AC Drive ODV-3-240041-3F1X-TN (ODV-3-240041-3F1X-TN)

Brand:
INVERTEK
Model:
ODV-3-240041-3F1X-TN
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $2,000.00
Online Price: $1,071.43
Adding to cart… The item has been added
  • Accurate speed control
  • Energy optimisation function
  • Resonance avoidance
  • Sleep and wake functions
  • Advanced on-board features
  • Intelligent maintenance interval
  • IP55 and IP66 enclosure options
  • OLED display standard on all models
  • Simple parameter structure
  • Practical design
  • Integrated PID controller
  • Through-hole mounting kit available

Technical Specifications

Model:
ODV-3-240041-3F1X-TN
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
2 HP
HP Rating @ 110% OL:
2 HP
Rated Amps:
4.1 A
Amp Rating @ 110% OL:
4.1 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
4.1 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
2
Series:
OptiDrive Eco

Product Information

INVERTEK OptiDrive Eco Series

Optidrive Eco Variable Frequency Drives provide efficient, reliable and quiet control of motors for HVAC and pumping applications. Designed to provide maximum operating efficiency whilst minimising environmental impact, Optidrive Eco offers unrivalled performance and flexibility, whilst meeting the key standards and requirements of demanding applications.
