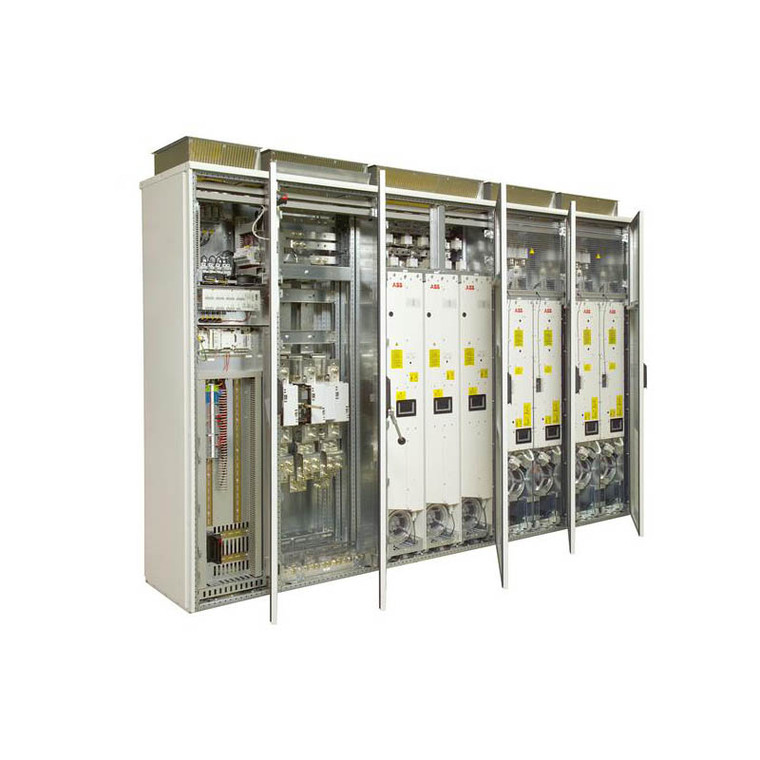

ABB ACS800-U2 VFD, 250HP, 302A, 460V (ACS800-U2-0300-5)

ABB ACS800-U2 VFD, 250HP, 302A, 460V (ACS800-U2-0300-5)

Brand:
ABB
Model:
ACS800-U2-0300-5
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Free-standing
  • UL Type 1 protection class
  • Line fuse disconnect switch
  • Harmonic filtering AC choke inside
  • Input rectifier protection
  • Long lifetime cooling fan and capacitors
  • Extensive, programmable I/O with galvanically isolated inputs
  • Three I/O and fieldbus extension slots inside
  • Alphanumeric, multilingual control panel with start-up assistant feature
  • Large power terminals allowing the use of a wide range of cable sizes
  • The ACS800-U2 includes the extension enclosure as standard
    • Write a Review

    Technical Specifications

    Product Information

    ABB ACS800-U2 Series

    ACS800-U2 Series Free-standing drives

    Optimize your motor performance with everything built-in

    The ACS800-U2 single drive is a unique, extremely compact bookshelf-style unit with a new innovative free-standing enclosure. The power ratings start from 125 Hp and go up to 600 Hp continuous load rating. It is available only in UL Type 1 protection class. It also offers a wide range of built in options including, EMC filters, brake choppers, line apparatus such as fuse disconnect switch and contactor.

    Highlights

    Standard Features

    Drive Details

    Manufacturer
    ABB

    Series
    ACS800-U2

    Model
    ACS800U203005

    Condition
    New

    Constant/Variable Torque
    CT/VT

    Horsepower?
    LO: 300 HP
    HO: 250 HP

    Maximum Amps?
    LO: 361 A
    HO: 302 A

    Input
    3-Phase
    380 to 500V at 50/60 Hz

    Output
    3-Phase
    380 to 500V at 50/60 Hz

    Enclosure Rating
    UL Type 1

    Frame Size
    R8

    Dimensions
    Height: 79.7 in
    Width: 31.5 in
    Depth: 24.5 in
