Technical Specifications
Model:
MSV14020HA0030
Brand:
Motor Drives International
Product Condition:
New
Warranty:
1 Year Manufacturer Warranty
Horsepower Rating:
20 HP
Rated Amps:
25 A
Rated Voltage:
460 V
Phase:
Three Phase
Enclosure Rating:
UL Type 1
Mounting Type:
Wall Mountable
Mounting Type:
Free Standing
Output Voltage:
460 V
System Amps:
25 A
Free Standing:
Yes
Circuit Breaker:
Yes
Height:
48.00 in
Width:
12.00 in
Depth:
13.00 in
Product Information

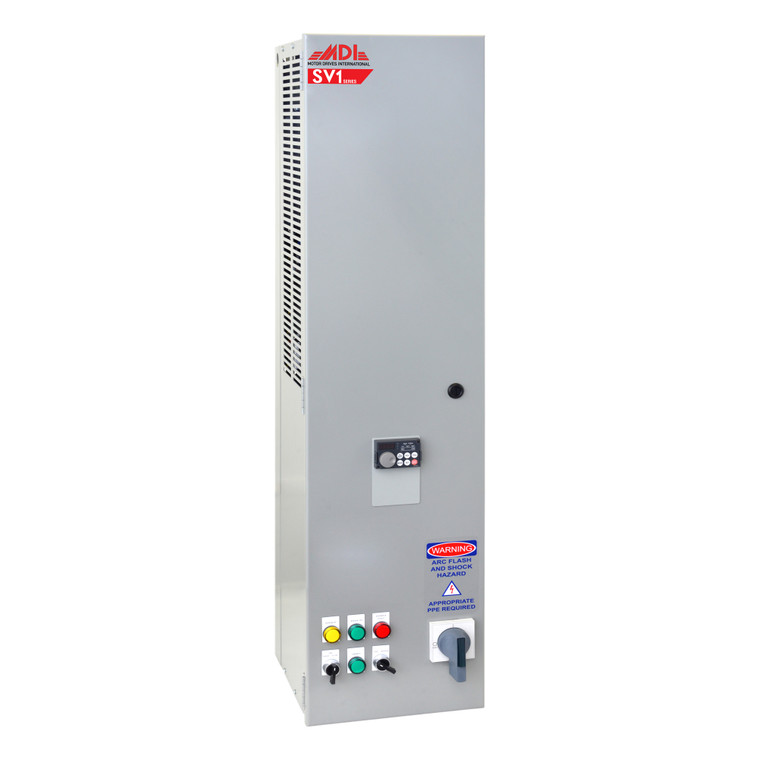

Motor Drives International SV1 Series
The SVI Motor Control Panel
Only 12†wide, the SV1 is our slimmest standard enclosed VFD panel. With a durable Mitsubishi Variable Frequency Drive, circuit breaker, options for many control protocols, and 3% line reactors, the SV1 is a smart choice for HVAC and pumping applications.
Highlights
Slim wall mountable NEMA 1 design
Mitsubishi F700 (with 1 yr. warranty)
Standard 3% line reactor (5% option available)
Full function keypad (advanced keypad available)
Remote I/O capability
Operator devices
Three contactor bypass optional add-on
Through door circuit breaker disconnect handle (padlockable)Standard Features
Product Details
Manufacturer
Motor Drives International
Series
SV1
Model
MSV14020HA0030
Condition
New
1 Year Manufacturer Warranty
Horsepower
20HP
Maximum Amps
25A
Overload Rating
110% for 60 seconds (40°C)
120% for 60 seconds (40°C)
Input
3-Phase
380 to 480V
Output
3-Phase
380 to 480V
Enclosure
NEMA 1
Features
Wall Mountable
Circuit Breaker
Dimensions
Height: 48.00 in
Width: 12.00 in
Depth: 13.00 in
