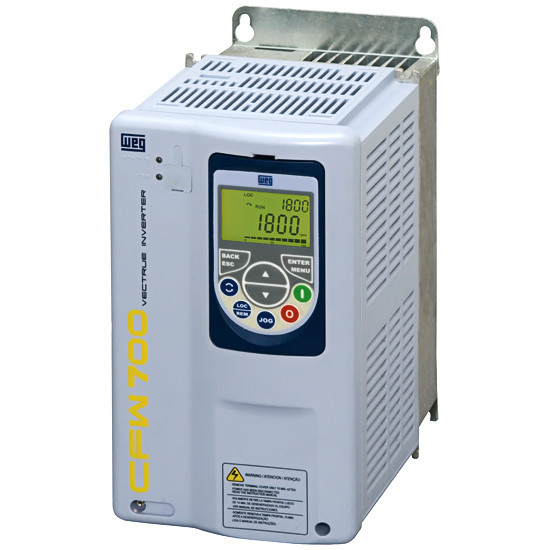

20HP & 25HP 230V WEG VFD, Inverter, AC Drive CFW700C70P0T2DBN1 (CFW700C70P0T2DBN1)

Brand:
WEG
Model:
CFW700C70P0T2DBN1
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • Simplicity – same programming as all other WEG drives
  • Dual DC Bus chokes (6%) for longer VFD lifetime, reduces harmonics eliminating the need for external line reactors
  • 24V DC Power Supply for process transducers - Standard
  • Soft-PLC with free programming software
  • Encoder Input - Standard
  • RS-485 Modbus RTU - Standard
  • Conformal Coated boards for harsh industrial environments
  • Rated 50 °C (122 °F) – up to 60 °C (140 °F) with derating
  • Self-tuning function automatically matches VFD with motor
  • UL, cUL, CE, C-Tick, GOST, IRAM, INMETRO approved

  • Technical Specifications

    Model:
    CFW700C70P0T2DBN1
    Brand:
    WEG
    Product Condition:
    New
    Horsepower Rating:
    20 HP
    Horsepower Rating:
    25 HP
    HP Rating @ 110% OL:
    25 HP
    HP Rating @ 150% OL:
    20 HP
    Rated Amps:
    56 A
    Amp Rating @ 110% OL:
    70 A
    Amp Rating @ 150% OL:
    56 A
    Rated Voltage:
    230 V
    Output Voltage:
    230 V
    Output Amperage Rating:
    56 A
    Phase Rating:
    3 Phase Input - 3 Phase Output
    Phase:
    Three Phase
    Enclosure Rating:
    UL Type 1
    Series:
    CFW700
    Rated Amps:
    70 A
    Height:
    17.64 in
    Width:
    8.66 in
    Depth:
    11.51 in

    Product Information

    WEG CFW700 Series

    WEG CFW700 Series Fan and Pump VFD

    The WEG CFW700 Series was designed to exceed industry expectations. Based on the robust CFW11 platform the CFW700 is designed and optimized for variable torque applications such as pumps and fans.

    A unique drive with unique characteristics:

    Standard Features

    Drive Details

    Manufacturer
    WEG

    Series
    CFW700

    Model
    CFW700C70P0T2DBN1

    Condition
    New

    Constant/Variable Torque
    CT/VT

    Horse Power
    CT: 20 HP
    VT: 25 HP

    Maximum Amps
    CT: 56 A
    VT: 70 A

    Input
    3-Phase
    200-240V

    Output
    3-Phase
    200-240V

    Dimensions
    Height: 17.64 in
    Width: 8.66 in
    Depth: 11.51 in

    Enclosure
    NEMA 1
