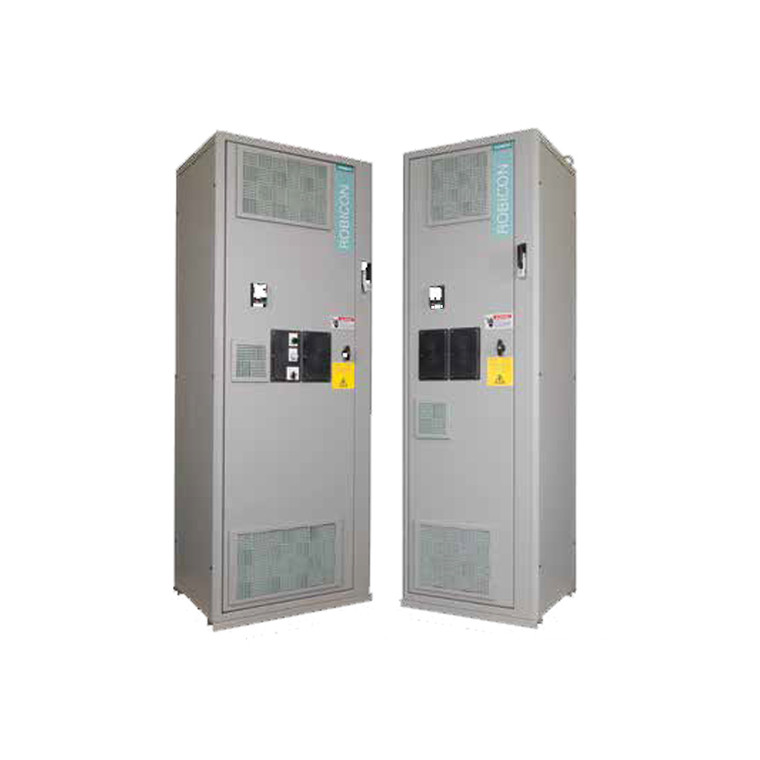

200HP 460V Siemens Robicon W120CP Industrial Control Panel, Motor Control Panel, VFD Box (6SL3710-3BJ32-5AR0)

200HP 460V Siemens Robicon W120CP Industrial Control Panel, Motor Control Panel, VFD Box (6SL3710-3BJ32-5AR0)

Brand:
SIEMENS
Model:
6SL3710-3BJ32-5AR0
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • NEMA 1 enclosure, with blower
  • UL listing per UL508C
  • Short circuit current rating (SCCR) 65 kA at 480 VAC
  • Clean power 18-pulse front end with patented phase shifting autotransformer and input line reactor
  • Motor side voltage source IGBT inverter with pulse width modulated (PWM) output
  • Circuit breaker disconnect with flange mount operator handle, mechanically interlocked with the enclosure door
  • Intelligent operator panel (IOP), door mounted for easy start-up operation
  • Windows based STARTER software-common to all models of the SINAMICS family
Write a Review

Technical Specifications

Product Information

SIEMENS Robicon W120CP Series

ROBICON W120CP Product Summary

ROBICON W120CP clean power 18-pulse drives from Siemens are the result of a combination of Siemens SINAMICS and ROBICON technology. The W120CP clean power drives are now available after over 20 years of quality and expertise to produce an exceptional drive. The 18-pulse technology provides clean power to meet the low harmonic requirements of IEEE 519-1992 at the VFD input terminals. The drive can be operated in either Volts/Hertz or sensorless vector control modes. The W120 has wall mount or floor standing options.

Features

Panel Details

Manufacturer
Siemens

Series
Robicon W120CP

Model
6SL37103BJ325AR0

Condition
New
1 Year Manufacture Warranty

Constant/Variable Torque
CT/VT

Horsepower
LO: 200 HP
HO: 150 HP

Maximum Amps
LO: 240 A
HO: 205 A

Input
3 Phase
460-480 V 50Hz/60Hz

Output
3 Phase
460-480 V 50Hz/60Hz

Enclosure Rating
NEMA 1

Features
Power Module PM 240 (18-pulse diode rectifier)
Circuit breaker disconnect
Integral braking chopper

Frame Size
F+

Dimensions
Height: 94 in
Width: 30 in
Depth: 24 in
