200HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4200HA0540 (MF3R4200HA0540)

200HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4200HA0540 (MF3R4200HA0540)

Brand:
Motor Drives International
Model:
MF3R4200HA0540
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
Call for Price
Adding to cart… The item has been added
  • Wall mountable and floor mountable NEMA 3R enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Covered full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
Write a Review

Technical Specifications

Product Information

Motor Drives International F3R Series

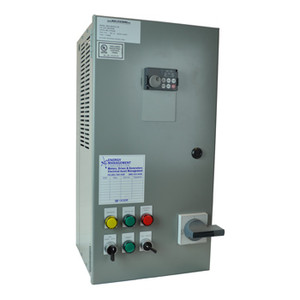

The F3R Motor Control Panel

Uniquely engineered to reflect and dissipate heat, the F3R is an all-in-one drive panel designed specifically for the outdoors. With forced air ventilation and exhaust, washable poly filters, and protective rain hoods, the F3R is ready for the elements.

Features

Product Details

Manufacturer
Motor Drives International

Series
F3R

Model
MF3R4200HA0540

Condition
New
1 Year Manufacturer Warranty

Horsepower
200 HP

Maximum Amps
250 A

Overload Rating
110% for 60 seconds (40°C)
120% for 60 seconds (40°C)

Input
3-Phase
380 to 480 V

Output
3-Phase
380 to 480 V

Enclosure
NEMA 3R

Features
Wall Mountable
Circuit Breaker
12% Harmonic Filter
Advanced Keypad

Dimensions
Height: 90.00 in
Width: 36.00 in
Depth: 24.00 in
