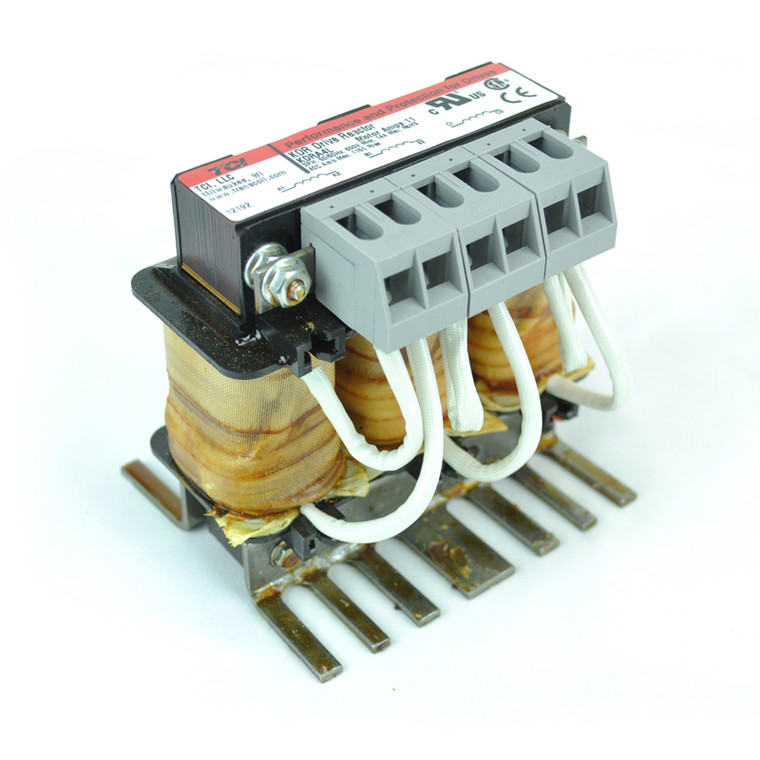

1HP 480V TCI 3% Line Reactor KDRA8L

Brand: TCI
Model: KDRA8L
Condition: New
Rating:
0% of 100

In stock
$81.99

Highlights

  • Lowering injected percentage of harmonic current

  • Improving true power factor

  • Reducing cross-talk between drives
  • Technical Specifications
    Brand TCI
    Product Condition New
    Model KDRA8L
    Product Information

    TCI Series


    A Cost-Effective Line Reactor with a Brand Name You Can Trust


    KDR Optimized Line Reactors applied to the line side of a PWM drive will greatly

    improve the overall performance of the drive. The additional circuit inductance

    will reduce AC voltage waveform line notching, DC bus overvoltage trips, inverter

    overvoltage, poor total power factor, and cross-talk.


    Use KDR Low “Z” Units For:

    These units can be used in any applications where

    traditionally either a 1.5% or 3% reactor would be

    applied.

    Reduction of nuisance tripping caused by:


    • Transient voltages caused by capacitor switching

    • Line notching

    • DC bus overvoltage tripping

    • Inverter overcurrent and overvoltage


    Additional benefits include:

    Highlights

  • Lowering injected percentage of harmonic current

  • Improving true power factor

  • Reducing cross-talk between drives
  • Standard Features

    Reactor Details



    Manufacturer

    TCI



    Series

    KDR



    Model

    KDRA8L



    Condition

    New



    Impedance

    3% (Low Z)



    Horse Power

    1 HP



    Voltage

    480V



    Enclosure

    Open



    Dimensions

    Height: 4.0 in
    Width: 4.18 in
    Depth: 3.75 in
