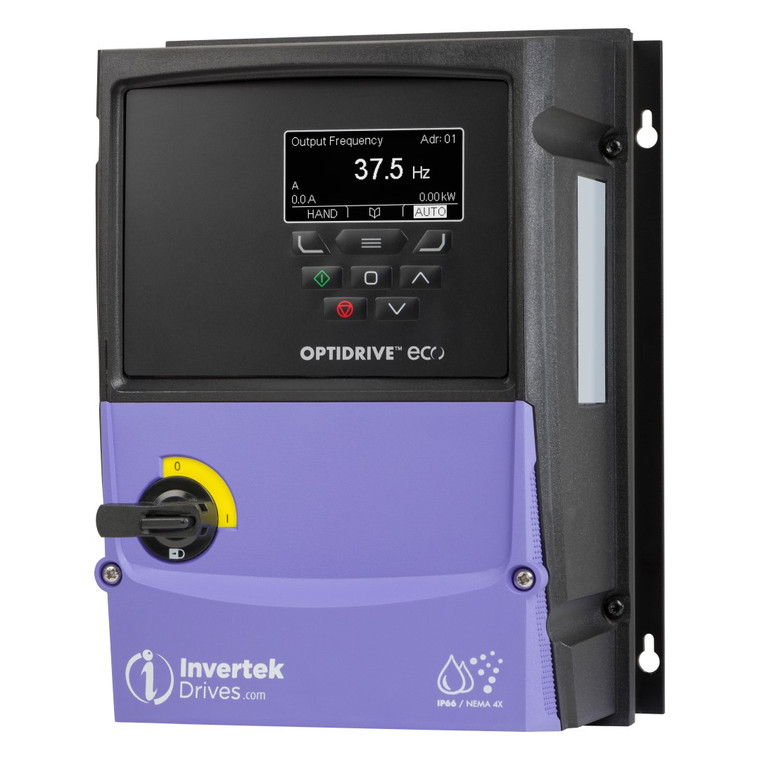

1HP, 460V, Invertek OptiDrive Eco VFD (ODV-3-240022-3F1X-TN)

Brand:
INVERTEK
Model:
ODV-3-240022-3F1X-TN
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $1,855.00
Online Price: $890.40
Adding to cart… The item has been added

Invertek variable frequency drives focus on performing well, providing simple programming, and fitting your application.

ODV-3-240022-3F1X-TN

  • 1 Horsepower
  • 2.2 Amps
  • 460 Volts
  • IP 66
  • 3 Phase Input - 3 Phase Output

Technical Specifications

Model:
ODV-3-240022-3F1X-TN
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
1 HP
HP Rating @ 110% OL:
1 HP
Rated Amps:
2.2 A
Amp Rating @ 110% OL:
2.2 A
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
2.2 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
2
Series:
OptiDrive Eco
Rated Voltage:
480 V
Height:
10.10 in
Width:
7.40 in
Depth:
9.40 in

Product Information

INVERTEK OptiDrive Eco Series

Invertek focuses on sophisticated motor controls for energy savings. The Optidrive Eco is designed for fan and pump applications with huge potential energy savings.

Standard Features

  • Efficient, reliable, and quiet control of motors for HVAC and pumping applications
  • Capable of Optiflow multiple pump control
  • Eco Vector motor control with energy-optimized design
  • Internal EMC filter
