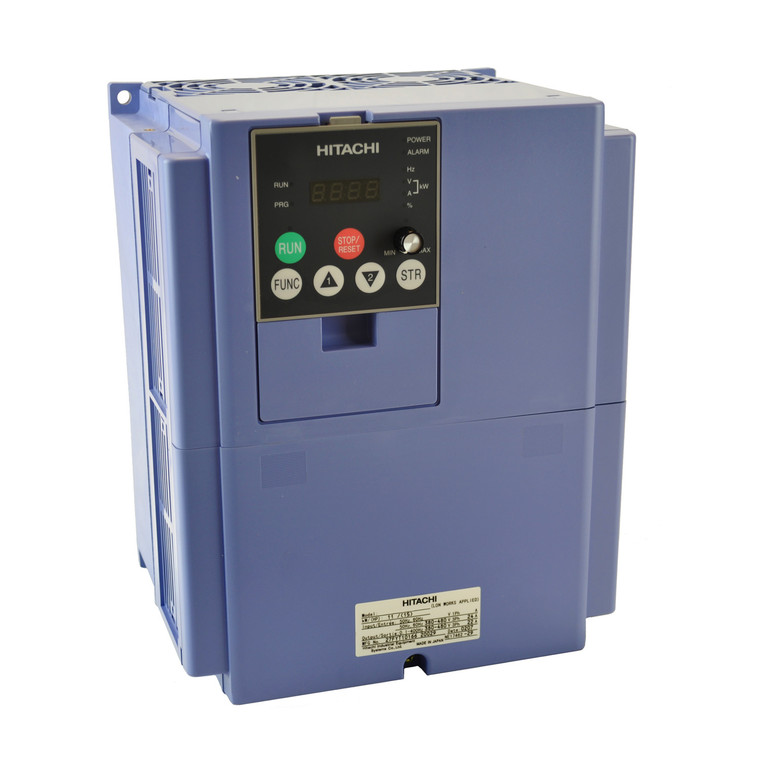

1HP 460V Hitachi VFD, Inverter, AC Drive L300P-007HBRM
Brand: HITACHI
Model: L300P-007HBRM
Condition: New with Defects or Obsolete
Kit Includes:
Highlights
- Wide Range of Application Specific Functions for Optimal Operation
- Automatic energy-saving function
- Enhance input/output terminals
- Analog output monitor
- Intelligent input/output terminal system
- Easy-to-use operator panel
- Ease of Maintenance
- Easy-removable cooling fan and DC bus capacitor
- Removable control circuit terminals
- Compact Design
- Installation area is reduced by approximately 30% from that of our previous model (comparison of 15HP)
- User-Friendly Operation
- Ease of operation with digital operator
- User selection of command functions ("Quick Menu")
- Built-in RS-485
- Optional PC drive configuration software
- Environmental Friendliness
- EMI filters (optional)
- Reduced noise from control power supply
- Protection for Various Installation Environments
- Standard Enclosure: IP20 or IP00
- Global Performance
- CE, UL, c-UL, C-Tick, approvals
- Compatibility with networks such as DeviceNet, PROFIBUS, LONWORKS, Modbus, RTU, and Ethernet with communication options
Compare with similar items
This Item
|
|
|
|
|
|
|
| 1HP 460V Hitachi VFD, Inverter, AC Drive L300P-007HBRM | 1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-02 | 1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-01 | 1HP 460V Saftronics VFD, Inverter, AC Drive S104001-4FS | 1HP 460V Mitsubishi VFD, Inverter, AC Drive FR-E740-026SC-NA | 1HP 460V Mitsubishi VFD, Inverter, AC Drive FR-D740-022-NA | |
| Ratings | ||||||
| Price |
$199.99
|
$174.00
|
$174.00
|
$199.99
|
List Price
$555.00
Online Price
$416.25
|
List Price
$405.00
Online Price
$303.75
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
L300
|
G200
|
G200
|
S10
|
E700
|
D700
|
| Rated Amps |
2.5 A
|
2.5 A
|
2.5 A
|
2.3 A
|
2.6 A
|
2.2 A
|
| Enclosure Rating |
UL Type 1
|
IP 20
|
IP 20
|
UL Type 4X
|
IP 20
|
IP 20
|
| Brand |
HITACHI
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Saftronics
|
MITSUBISHI
|
MITSUBISHI
|
| Horsepower Rating |
1 HP
|
1 HP
|
1 HP
|
1 HP
|
1 HP
|
1 HP
|
| Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
| Model |
L300P-007HBRM
|
G240-00025UL-02
|
G240-00025UL-01
|
S104001-4FS
|
FR-E740-026SC-NA
|
FR-D740-022-NA
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Constant Torque / Variable Torque | Variable Torque |
| Series | L300 |
| Phase | Three Phase |
| Rated Amps | 2.5 A |
| Enclosure Rating | UL Type 1 |
| Brand | HITACHI |
| Horsepower Rating | 1 HP |
| Rated Voltage | 460 V |
| Product Condition | New with Defects or Obsolete |
| Output Voltage | 460 V |
| Output Amperage Rating | 2.5 A |
| HP Rating @ 150% OL | 1 HP |
| Amp Rating @ 150% OL | 2.5 A |
| Model | L300P-007HBRM |
| Height | 10.13 in |
| Width | 11.63 in |
| Depth | 5.5 in |
Product Information
HITACHI L300 Series
With its Automatic Energy-saving Function, the L300P delivers
“real-time” energy-saving operation for your fan and pump
applications. The function insures that motor operates at minimum
current in response to the torque required by the load.
Highlights
- Wide Range of Application Specific Functions for Optimal Operation
- Automatic energy-saving function
- Enhance input/output terminals
- Analog output monitor
- Intelligent input/output terminal system
- Easy-to-use operator panel
- Ease of Maintenance
- Easy-removable cooling fan and DC bus capacitor
- Removable control circuit terminals
- Compact Design
- Installation area is reduced by approximately 30% from that of our previous model (comparison of 15HP)
- User-Friendly Operation
- Ease of operation with digital operator
- User selection of command functions ("Quick Menu")
- Built-in RS-485
- Optional PC drive configuration software
- Environmental Friendliness
- EMI filters (optional)
- Reduced noise from control power supply
- Protection for Various Installation Environments
- Standard Enclosure: IP20 or IP00
- Global Performance
- CE, UL, c-UL, C-Tick, approvals
- Compatibility with networks such as DeviceNet, PROFIBUS, LONWORKS, Modbus, RTU, and Ethernet with communication options
