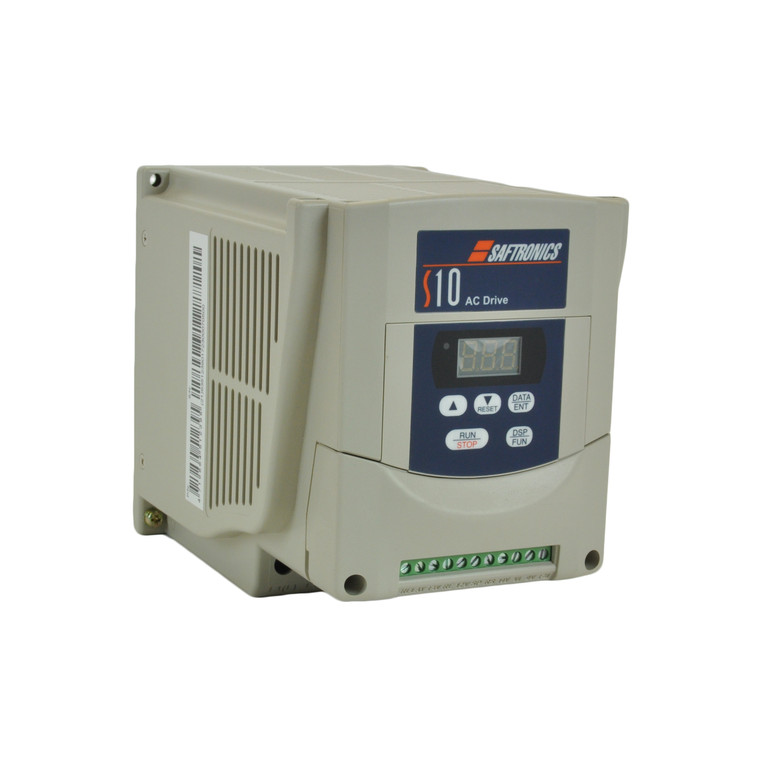

1HP 230V Saftronics VFD, Inverter, AC Drive S102001-41FS (S102001-41FS)

1HP 230V Saftronics VFD, Inverter, AC Drive S102001-41FS (S102001-41FS)

Brand:
Saftronics
Model:
S102001-41FS
Condition:
New Surplus
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $199.99
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
S102001-41FS
Brand:
Saftronics
Product Condition:
New Surplus
HP Rating @ 150% OL:
1 HP
Amp Rating @ 150% OL:
4.2 A
Output Voltage:
230 V
Output Amperage Rating:
4.2 A
Phase Rating:
1 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Single Phase
Horsepower Rating:
1 HP
Rated Amps:
4.2 A
Rated Voltage:
230 V
Enclosure Rating:
UL Type 4X
Series:
S10
Height:
8.46 in
Width:
5.51 in
Depth:
7.19 in

Product Information

Saftronics S10 Series

The Saftronics S10 series drives are manufactured using industry established PWM technology and a powerful software platform allowing for flexibility for user-based programming.

Standard Features

  • No de-rating needed for single phase input
  • A full set of motor and drive diagnostics
  • Programmable I/O
  • Power ride through
  • DC injection braking
  • 3 event fault log
  • 6 selectable V/Hz curves.
  • Frequency range of 1 to 200 HZ
  • Overload protection of 150% for up to 1 minute.
  • Mounting screws or DIN rail installation
  • Digital LED display
  • Adjustable torque boost
  • Alarms for motor overload, overheat, & overcurrent
  • Programmable accelerate/decelerate time between 0.1-999 Seconds
Download Manual
