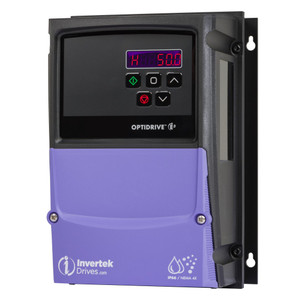

1HP, 240V, Invertek OptiDrive E3 VFD (ODE-3-110043-101A-EIP)

1HP, 240V, Invertek OptiDrive E3 VFD (ODE-3-110043-101A-EIP)

Brand:
INVERTEK
Model:
ODE-3-110043-101A-EIP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $1,235.00
Online Price: $592.80
Adding to cart… The item has been added

Invertek variable frequency drives focus on performing well, providing simple programming, and fitting your application.

ODE-3-110043-101A-EIP

  • 1 Horsepower
  • 4.3 Amps
  • 240 Volts
  • IP 66
  • Single Phase Input - 3 Phase Output
Write a Review

Technical Specifications

Series:
OptiDrive E3
Model:
ODE-3-110043-101A-EIP
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
1 HP
Rated Amps:
4.3 A
Rated Voltage:
115 V
Rated Input Frequency:
60 Hz
Output Voltage:
240 V
Output Amperage Rating:
4.3 A
Phase Rating:
1 Phase Input - 3 Phase Output
Phase:
Single Phase
Enclosure Rating:
IP 66
Frame Size:
1
Height:
9.10 in
Width:
6.30 in
Depth:
6.40 in

Product Information

INVERTEK OptiDrive E3 Series

Invertek focuses on sophisticated motor controls for energy savings. The Optidrive E3 is easy to understand and use. The space-saving design helps fit in compact applications.

Standard Features

  • Simple commissioning with 14 parameter basic setup and default settings suitable for most applications
  • Contactor-style connections for simple wiring
  • Intuitive keypad with precise digital control at the touch of a button
  • Applications macros to switcch between industrial, pump, and fan modes
  • Internal category C1 EMC filter
  • Single phase input and output options
