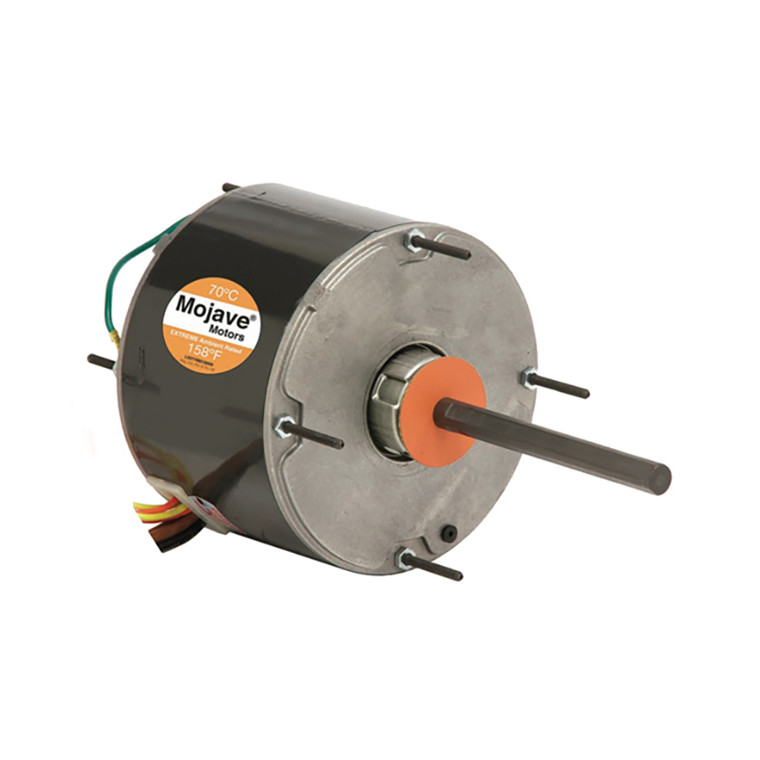

US Motors (Nidec), AC Motor, 1870H, 0.5 HP, 900 RPM, Single Phase, 208-230 V, 60 Hz, 48Y (1870H)

US Motors (Nidec), AC Motor, 1870H, 0.5 HP, 900 RPM, Single Phase, 208-230 V, 60 Hz, 48Y (1870H)

Brand:
US Motors (Nidec)
Model:
1870H
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
1870H
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
0.5 HP
Synchronous RPM:
900 RPM
Rated RPM:
825 RPM
Frame Size:
48Y
Rated Supply Voltage:
208-230 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
N
Full Load Torque:
50.89
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
64.1%
C Dimension:
12.3
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
3.3 A

Product Information

US Motors (Nidec) Series

1/2 HP, 825 RPM, 1870H, 208-230 V, 60 HZ, 48Y
