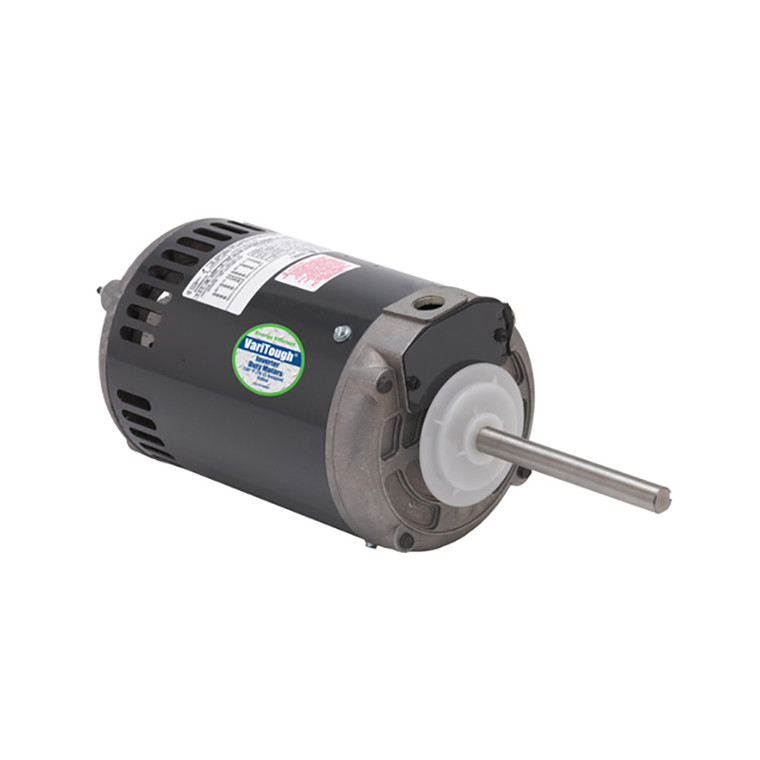

US Motors (Nidec), AC Motor, 1832V, 1.5 HP, 900 RPM, Three Phase, 208-230/460 V, 60 Hz, 56HZ (1832V)

US Motors (Nidec), AC Motor, 1832V, 1.5 HP, 900 RPM, Three Phase, 208-230/460 V, 60 Hz, 56HZ (1832V)

Brand:
US Motors (Nidec)
Model:
1832V
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DS20
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
1.5 HP
Synchronous RPM:
900 RPM
Rated RPM:
850 RPM
Frame Size:
56HZ
Rated Supply Voltage:
208-230/460 V
Motor Design Class:
B
Full Load Torque:
9.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
74%
C Dimension:
15.7
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6.6-6.2/3.1 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 850 RPM, 1832V, 208-230/460 V, 60 HZ, 56HZ
