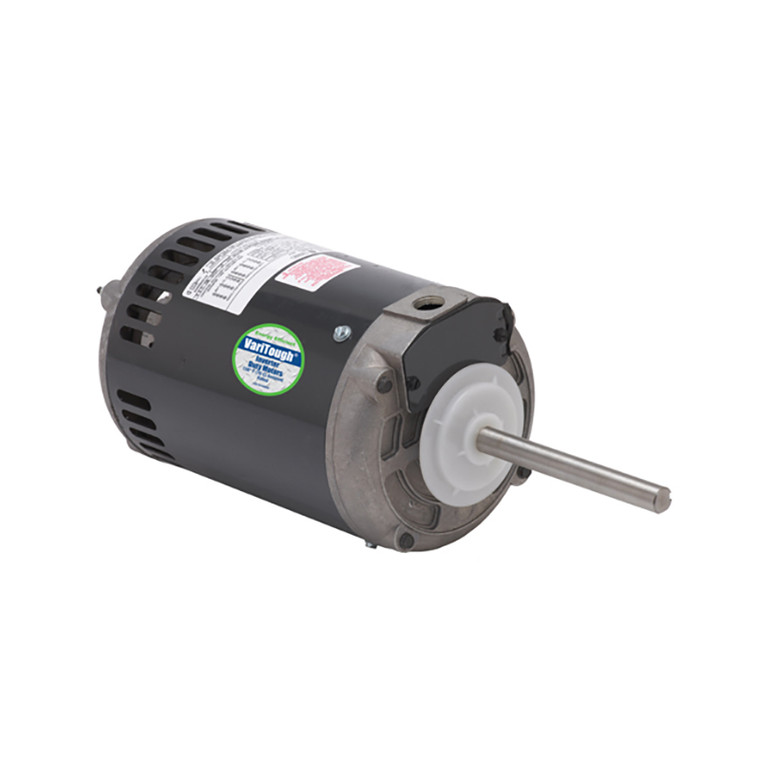

US Motors (Nidec), AC Motor, 1830V, 1 HP, RPM, Three Phase, 208-230/460 V, Hz, 56YZ (1830V)

Brand:
US Motors (Nidec)
Model:
1830V
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
J063BKS0226015B
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
1 HP
Synchronous RPM:
825 RPM
Rated RPM:
825 RPM
Frame Size:
56YZ
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Open Air Over (OAO)
Motor Design Class:
B
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
73%
C Dimension:
13.5
Bearing Type:
BALL
Motor Full Load Amps:
5.2-5.2/2.6 A

Product Information

US Motors (Nidec) Series

1 HP, 825 RPM, 1830V, 208-230/460 V, HZ, 56YZ
