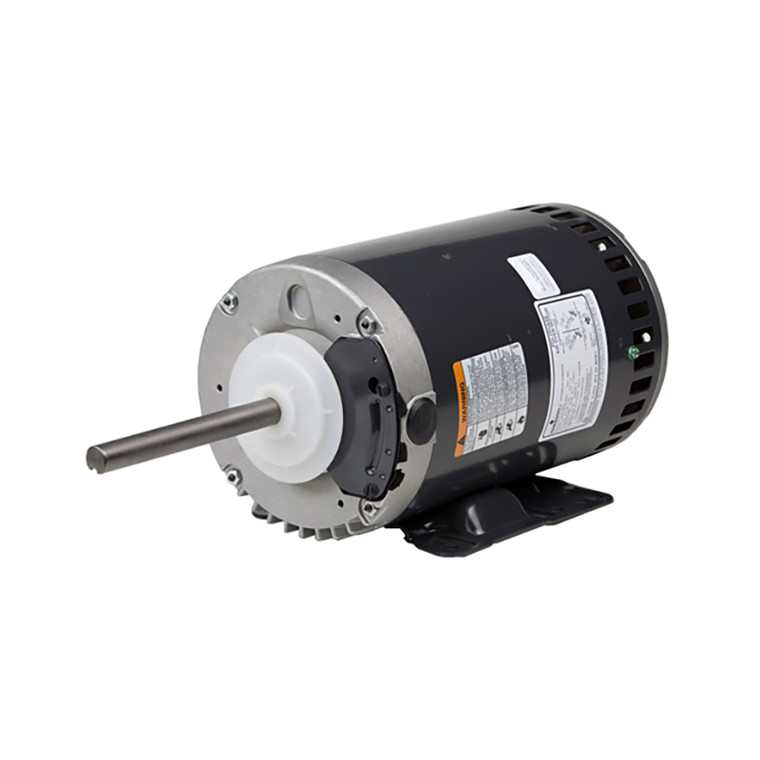

US Motors (Nidec), AC Motor, 1822H, 2 HP, 1200 RPM, Three Phase, 208-230/460 V, 60 Hz, 56Z (1822H)

US Motors (Nidec), AC Motor, 1822H, 2 HP, 1200 RPM, Three Phase, 208-230/460 V, 60 Hz, 56Z (1822H)

Brand:
US Motors (Nidec)
Model:
1822H
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
P063ACA1160015B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Air Handling (HVAC)
Horsepower Rating:
2 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1140 RPM
Frame Size:
56Z
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Open Air Over (OAO)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
C Dimension:
16.7
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
7.6-7.4/.3.7 A

Product Information

US Motors (Nidec) Series

2 HP, 1140 RPM, 1822H, 208-230/460 V, 60 HZ, 56Z
