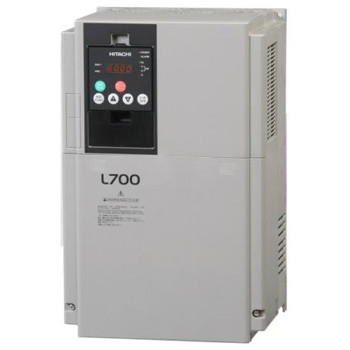

15HP 230V Hitachi VFD, Inverter, AC Drive L700-110LFF (L700-110LFF)

15HP 230V Hitachi VFD, Inverter, AC Drive L700-110LFF (L700-110LFF)

Brand:
HITACHI
Model:
L700-110LFF
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $1,063.99
Adding to cart… The item has been added
  • Easy operation and setup by standard keypad (shown) or optional PC-based ProDriveNext configuration software
  • V/Hz CT & VT, PLUS Sensorless Vector (SLV) control modes
  • Modbus/RTU standard - communication options available for networks such as Ethernet, DeviceNet, LONworks (others planned)
  • Wide range of application-specific functions for optimal performance
    • Auto energy savings function
    • Intelligent terminal system
    • Removable circuit terminals
  • EzSQ Internal PLC-like controller
  • Internal DB transistor up to 30 kW (40 hp)
  • EMI filter integrated up to 160 kW
  • Easy to set up, operate & maintain
  • NEMA1 Conduit Box Optional
Write a Review

Technical Specifications

Model:
L700-110LFF
Brand:
HITACHI
Product Condition:
New
Horsepower Rating:
15 HP
HP Rating @ 120% OL:
15 HP
Rated Amps:
44 A
Amp Rating @ 120% OL:
44 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
44 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 20
Height:
10.27 in
Width:
8.27 in
Depth:
6.69 in

Product Information

HITACHI L700 Series

DELETE

Highlights

  • Easy operation and setup by standard keypad (shown) or optional PC-based ProDriveNext configuration software
  • V/Hz CT & VT, PLUS Sensorless Vector (SLV) control modes
  • Modbus/RTU standard - communication options available for networks such as Ethernet, DeviceNet, LONworks (others planned)
  • Wide range of application-specific functions for optimal performance
    • Auto energy savings function
    • Intelligent terminal system
    • Removable circuit terminals
  • EzSQ Internal PLC-like controller
  • Internal DB transistor up to 30 kW (40 hp)
  • EMI filter integrated up to 160 kW
  • Easy to set up, operate & maintain
  • NEMA1 Conduit Box Optional
Download Manual
