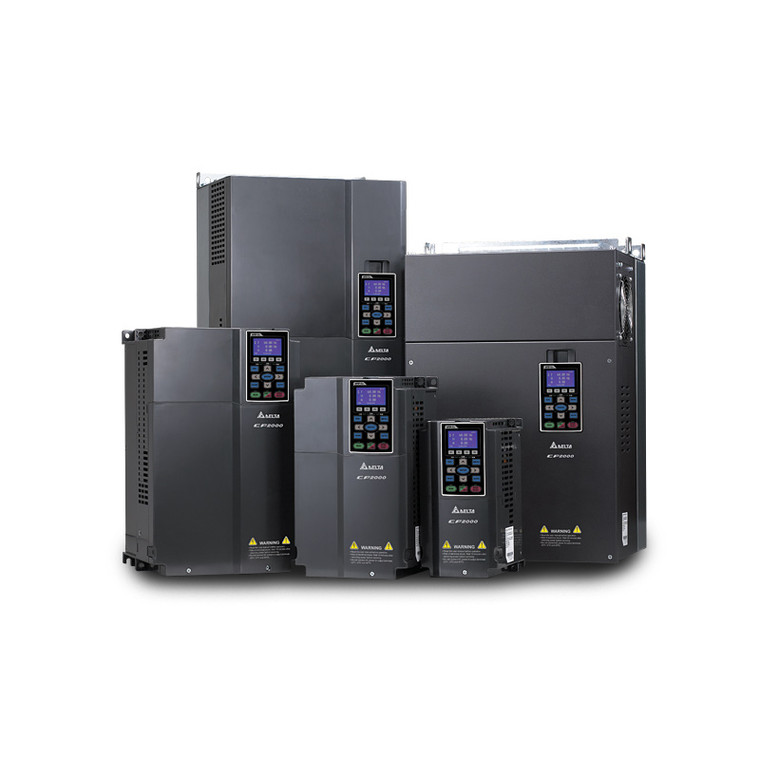

150HP 690V Delta CP2000 VFD, Inverter, AC Drive VFD1100CP63A-21 (VFD1100CP63A-21)

150HP 690V Delta CP2000 VFD, Inverter, AC Drive VFD1100CP63A-21 (VFD1100CP63A-21)

Brand:
Delta
Model:
VFD1100CP63A-21
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$6,866.00
Online Price: $6,522.70
Adding to cart… The item has been added
  • LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
  • Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
  • Modular design for flexible extension and easy maintenance
  • High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP and CANopen
  • Extended life cycle
  • Enhanced conformal coating on PCBs for superior durability in critical environments
  • Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
  • Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
  • Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control
  • Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)
Write a Review

Technical Specifications

Product Information

Delta CP2000 Series

Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.

Download Manual
