150HP, 460V, Invertek Optidrive P2 VFD (ODP-2-64150-3HF42-MN)

150HP, 460V, Invertek Optidrive P2 VFD (ODP-2-64150-3HF42-MN)

Brand:
INVERTEK
Model:
ODP-2-64150-3HF42-MN
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
List Price:  $13,991.00
Online Price: $6,715.68
Adding to cart… The item has been added

Invertek variable frequency drives focus on performing well, providing simple programming, and fitting your application.

ODP-2-64150-3HF42-MN

  • 150 Horsepower
  • 180 Amps
  • 460 Volts
  • IP 20
  • 3 Phase Input - 3 Phase Output
Free shipping over $50*
Write a Review

Technical Specifications

Model:
ODP-2-64150-3HF42-MN
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
150 HP
HP Rating @ 150% OL:
150 HP
Rated Amps:
180 A
Amp Rating @ 150% OL:
180 A
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
180 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Frame Size:
6B
Series:
Optidrive P2
Rated Voltage:
480 V
Height:
28.58 in
Width:
12.99 in
Depth:
12.60 in

Product Information

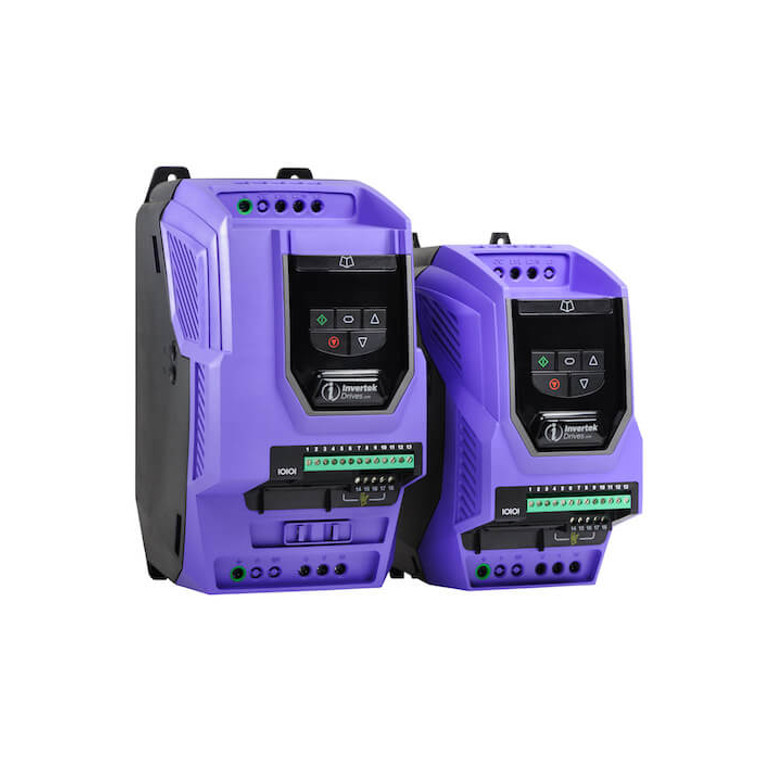

INVERTEK Optidrive P2 Series

Invertek focuses on sophisticated motor controls for energy savings. The Optidrive P2 is a high performance VFD that will help get the most out of your motor applications. With Invertek's standard ease of use, this drive can handle whatever you need.

Standard Features

  • Advanced motor control with the latest hardware and algorithms
  • Designed for fast installation and commissioning
  • Simple PLC functionality
  • Low ambient operation
  • Dedicated hoist mode and integral brake transistor
  • Internal EMC filter
Download Manual
