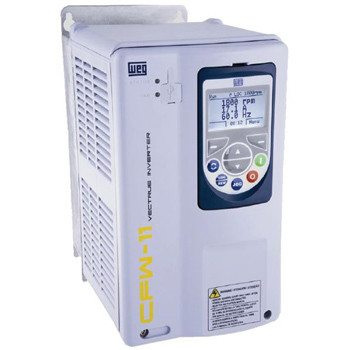

150HP & 175HP 460V WEG VFD, Inverter, AC Drive CFW110211T4ON1Z (CFW110211T4ON1Z)

150HP & 175HP 460V WEG VFD, Inverter, AC Drive CFW110211T4ON1Z (CFW110211T4ON1Z)

Brand:
WEG
Model:
CFW110211T4ON1Z
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Same programming as all other WEG VFD.
  • Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options.
  • USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware.
  • Human-Machine Interface (HMI) with backlit graphic display and soft-keys, greatly facilitates inverter programming and operation.
  • DC link inductors (symmetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for external line reactance).
  • Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature.
  • Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance.
  • Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads.
  • Protection with failure and alarm warnings.
  • Motor overload protection in compliance with IEC 60947-4-2/UL 508 C.
  • Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software).
  • Guided start-up simplifies initial user programming.
  • Real time clock.
  • TRACE / SCOPE function to assist with the start-up and system diagnostics.
Write a Review

Technical Specifications

Product Information

WEG CFW11 Series

WEG's CFW11 uses state-of-the-art technology to control motors up to 600HP. Aimed at increasing customers productivity, the CFW11 offers the following innovations:
