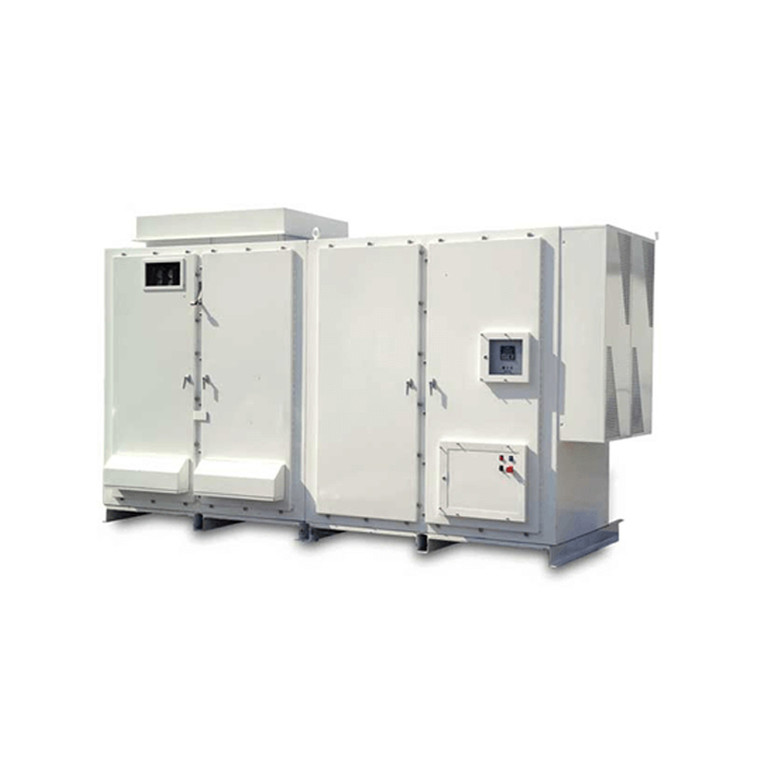

1500HP 4160V Toshiba MTX2 VFD, Inverter, AC Drive MX45AN44150AA (MX45AN44150AA)

1500HP 4160V Toshiba MTX2 VFD, Inverter, AC Drive MX45AN44150AA (MX45AN44150AA)

Brand:
TOSHIBA
Model:
MX45AN44150AA
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Outdoor Design UL-Rated Rainproof (NEMA 3R) Enclosure
  • Three Cables In, Three Cables Out
  • Distribution-Quality Lightening Arrestors as Standard
  • 36-Pulse Harmonic Cancellation Complies with IEEE-519 2014
  • Higher True Factor (>0.95) than Running Motors Across-the-Line
  • Provides Easy Monitoring & Maintenance through Advanced User Interface Design
  • Removable Power Modules
  • Totally Enclosed Cooling System
  • Allows for Standard Motors to be Used in Conjunction with Drive Without Special Motor Insulation
Write a Review

Technical Specifications

Product Information

TOSHIBA MTX2 Series

Toshiba’s MTX2 NEMA 3R outdoor medium voltage adjustable speed drive (ASD) is one of the most technologically advanced drives in the industry. The advanced power section topology and state-of-the-art enclosure design have resulted in a reduced footprint and enhanced MTTR. Regardless of the environmental settings, the MTX2 can be installed anywhere without needing an indoor floor to be housed.

Standard Features

  • 100% Continuous Overload Rating, 115% for 60 Seconds
  • NEMA 3R Enclosure
  • Seven Discrete Digital Input Terminals with Programmable Functions
  • Five Available Digital Programmable Outputs
  • Two Analog Inputs; Isolation Tranducer Required
  • Eight Analog Outputs; Isolation Transducer Required
  • Medium Voltage IGBT Technology
  • EOI: Plain-English LCD Display
  • Ambient Temperature: -4° to 122° F (-20° to 50° C)
  • Altitude: Up to 1000 Meters without Derate (4500 Meter Option Available)
  • Humidity: 95% Non-Condensing
  • Standards & Compliances: NEC, NEMA, UL Listed in US & Canada, ANSI, & American Recovery & Reinvestment Act (ARRA) Compliant
