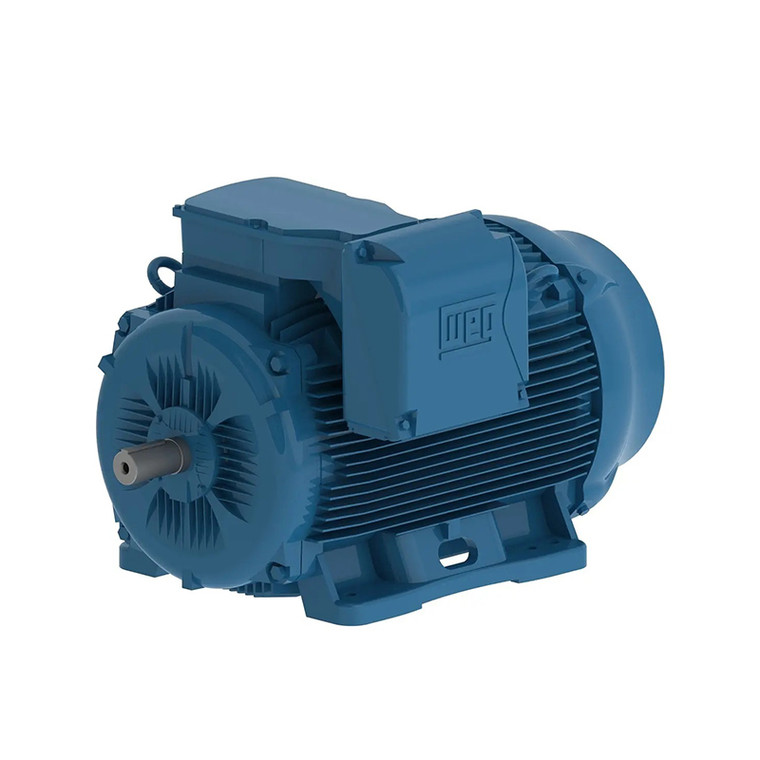

WEG, AC Motor, 13236ET3Y315S, M-W22, 175 HP, 3600, 3000 RPM, 315S, M, Three Phase, 460, 380-415, 660-690 V, 60 Hz (13236ET3Y315S, M-W22)

Brand:
WEG
Model:
13236ET3Y315S, M-W22
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $23,180.00
Adding to cart… The item has been added

Technical Specifications

Brand:
WEG
Product Condition:
New
Phase:
Three Phase
Service Factor:
1.25
Efficiency:
95.4%
C Dimension:
48.976
Motor Full Load Amps:
193 A
Duty Cycle:
Continuous
Motor Type:
General Purpose
Horsepower Rating:
175 HP
Synchronous RPM:
3000 RPM
Synchronous RPM:
3600 RPM
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
380 V
Rated Voltage:
460 V
Rated Voltage:
690 V
Construction:
Cast Iron
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz

Product Information

WEG Series

IEC TRU-METRIC MOTORS: TEFC, Foot Mount

Severe Duty is standard with all WEG W22 motors. They boast a 1.25 SF resulting in cooler operation. Construction is with high grade FC200 cast iron providing superior mechanical strength and heat dissipation. Motors are balanced to 0.08 inches per second vibration limits. Certified Class 1 Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G.
