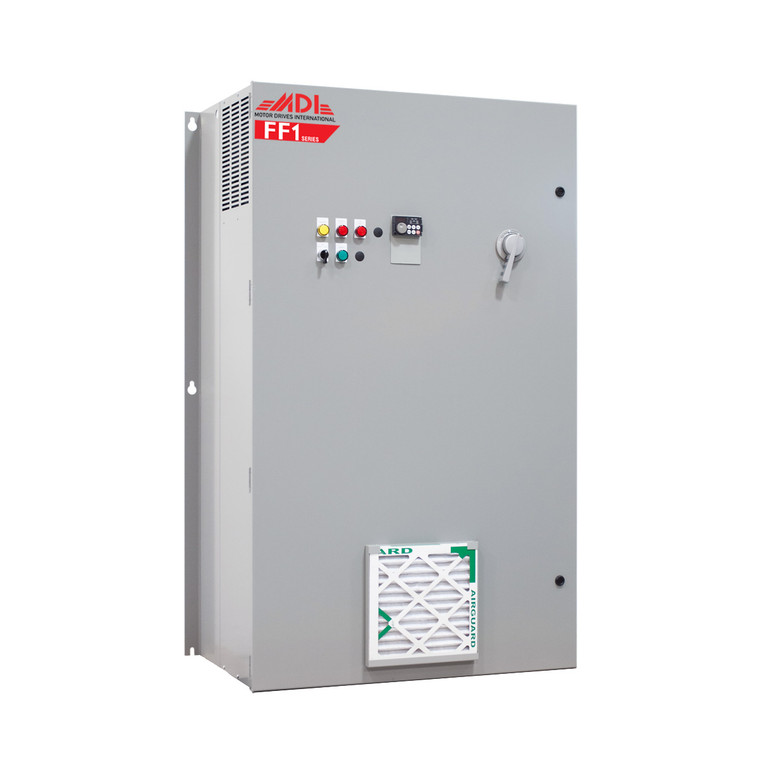

125HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MFF14125HA1140 (MFF14125HA1140)

125HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MFF14125HA1140 (MFF14125HA1140)

Brand:
Motor Drives International
Model:
MFF14125HA1140
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Wall mountable or floor mountable NEMA 1 enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
    • Write a Review

    Technical Specifications

    Product Information

    Motor Drives International FF1 Series

    The FF1 Motor Control Panel

    Powerfully engineered, the FF1 enclosed VFD panel is both reliable and versatile in design. The FF1 is a force filtered ventilated, all-in-one drive panel available in sizes up to 800HP. With the consistent power and flexibility the FF1 can supply, it a suitable choice for a variety of applications such as fans, pumps, and more.

    Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    FF1

    Model
    MFF14125HA1140

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    125HP

    Maximum Amps
    180A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    380 to 480V

    Output
    3-Phase
    380 to 480V

    Enclosure
    NEMA 1

    Features
    Wall Mountable
    Circuit Breaker
    3% Line Reactor
    3 Contactor Bypass Arrangement
    Advanced Keypad

    Dimensions
    Height: 60.00 in
    Width: 36.00 in
    Depth: 20.00 in
