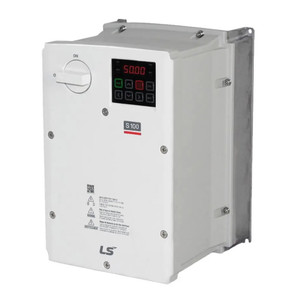

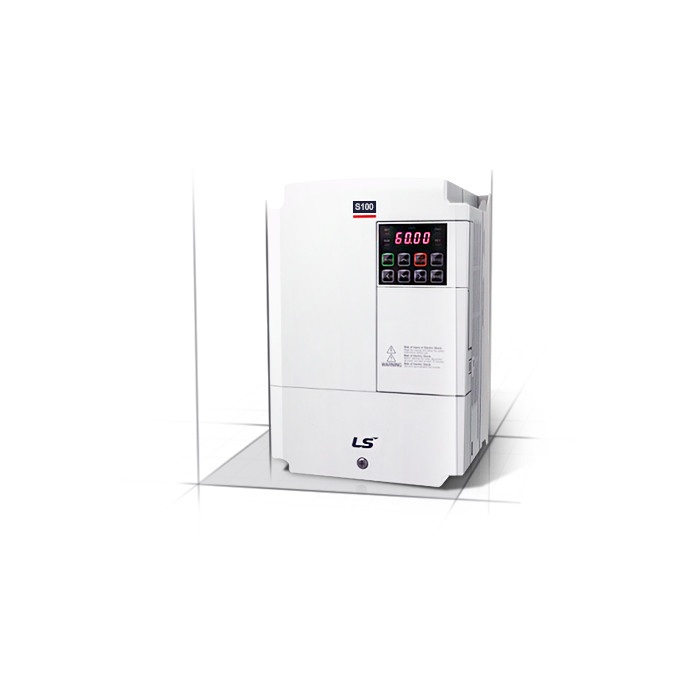

10HP & 7.5HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0055S100-4EOFNS (6031000700)

10HP & 7.5HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0055S100-4EOFNS (6031000700)

Brand:
LS
Model:
6031000700
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $1,041.11
Online Price: $780.83
Adding to cart… The item has been added
  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option
Write a Review

Technical Specifications

Model:
LSLV0055S100-4EOFNS
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
S100
Horsepower Rating:
7.5 HP
Horsepower Rating:
10 HP
HP Rating @ 120% OL:
10 HP
HP Rating @ 150% OL:
7.5 HP
Rated Amps:
12 A
Rated Amps:
16 A
Amp Rating @ 120% OL:
16 A
Amp Rating @ 150% OL:
12 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
12 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Height:
9.13 in
Width:
6.30 in
Depth:
5.51 in

Product Information

LS S100 Series

INV,LSLV0055S100-4EOFNS(EXPORT)
Download Manual
