100HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4100HA1540 (MF3R4100HA1540)

100HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4100HA1540 (MF3R4100HA1540)

Brand:
Motor Drives International
Model:
MF3R4100HA1540
Condition:
New
0 Customer Reviews
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Wall mountable and floor mountable NEMA 3R enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Covered full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
    • Write a Review

    Technical Specifications

    Model:
    MF3R4100HA1540
    Brand:
    Motor Drives International
    Product Condition:
    New
    Warranty:
    1 Year Manufacturer Warranty
    Horsepower Rating:
    100 HP
    Rated Amps:
    116 A
    Rated Voltage:
    460 V
    Phase:
    Three Phase
    Enclosure Rating:
    UL Type 3R
    Mounting Type:
    Wall Mountable
    Output Voltage:
    460 V
    System Amps:
    116 A
    Circuit Breaker:
    Yes
    Bypass:
    Yes
    Height:
    72.00 in
    Width:
    36.00 in
    Depth:
    18.00 in

    Product Information

    Motor Drives International F3R Series

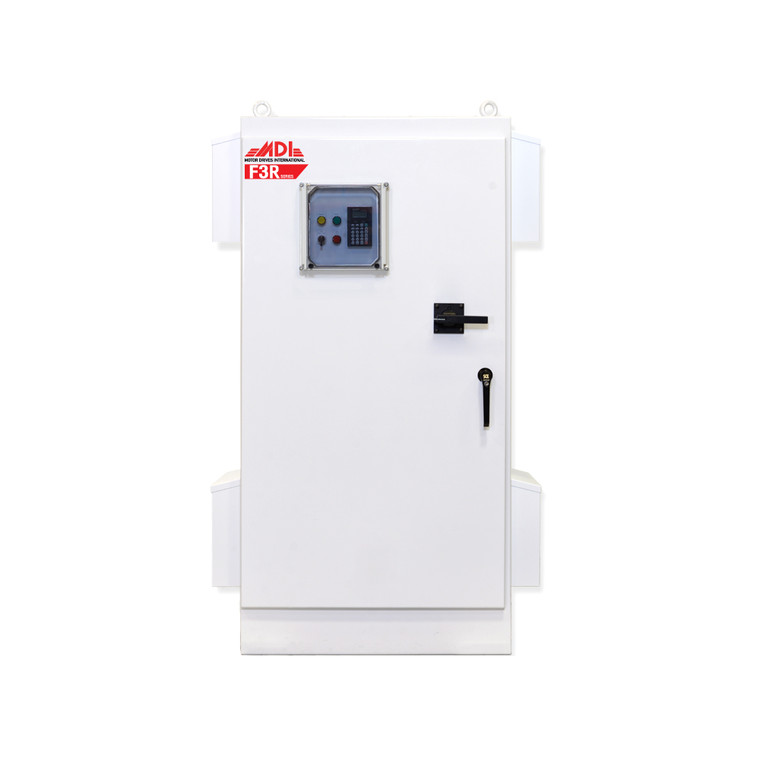

    The F3R Motor Control Panel

    Uniquely engineered to reflect and dissipate heat, the F3R is an all-in-one drive panel designed specifically for the outdoors. With forced air ventilation and exhaust, washable poly filters, and protective rain hoods, the F3R is ready for the elements.

    Highlights

  • Wall mountable and floor mountable NEMA 3R enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Covered full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)

    • Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    F3R

    Model
    MF3R4100HA1540

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    100HP

    Maximum Amps
    116A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    380 to 480V

    Output
    3-Phase
    380 to 480V

    Enclosure
    NEMA 3R

    Features
    Wall Mountable
    Circuit Breaker
    3 Contactor Bypass Arrangement
    12% Harmonic Filter
    Advanced Keypad

    Dimensions
    Height: 72.00 in
    Width: 36.00 in
    Depth: 18.00 in

    Download Brochure
