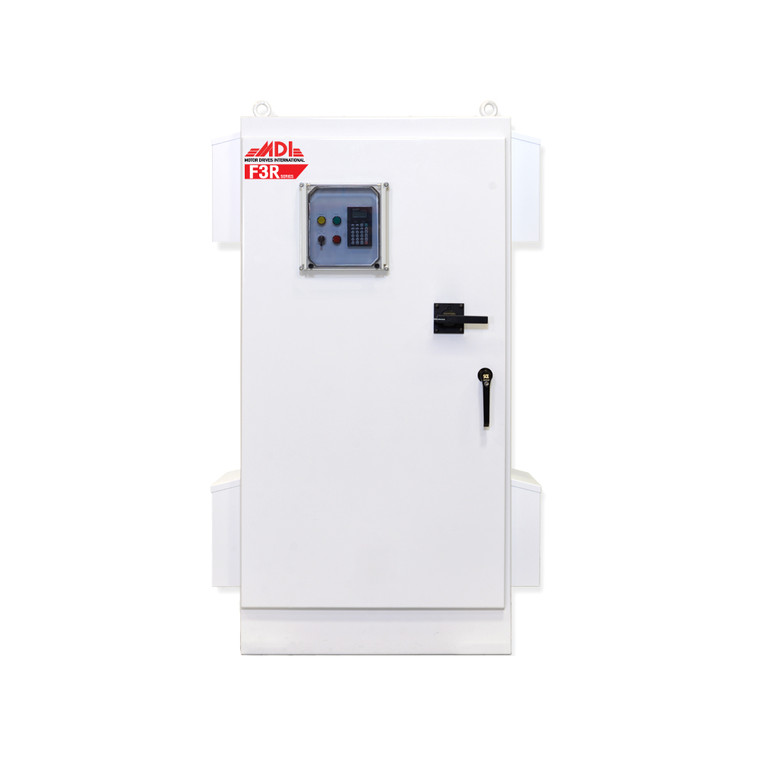

100HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4100HA1140 (MF3R4100HA1140)

100HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4100HA1140 (MF3R4100HA1140)

Brand:
Motor Drives International
Model:
MF3R4100HA1140
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Wall mountable and floor mountable NEMA 3R enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Covered full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
    • Write a Review

    Technical Specifications

    Product Information

    Motor Drives International F3R Series

    The F3R Motor Control Panel

    Uniquely engineered to reflect and dissipate heat, the F3R is an all-in-one drive panel designed specifically for the outdoors. With forced air ventilation and exhaust, washable poly filters, and protective rain hoods, the F3R is ready for the elements.

    Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    F3R

    Model
    MF3R4100HA1140

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    100HP

    Maximum Amps
    116A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    380 to 480V

    Output
    3-Phase
    380 to 480V

    Enclosure
    NEMA 3R

    Features
    Wall Mountable
    Circuit Breaker
    3% Line Reactor
    3 Contactor Bypass Arrangement
    Advanced Keypad

    Dimensions
    Height: 72.00 in
    Width: 36.00 in
    Depth: 18.00 in
