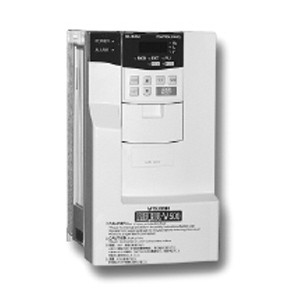

100HP 460V Mitsubishi VFD, Inverter, AC Drive FR-V540L-75K-NA

Brand: MITSUBISHI
Model: FR-V540L-75K-NA
Condition: New with Defects or Obsolete
Rating:
0% of 100

Out of stock

Highlights

  • Position control by contact inputs. By setting the feed pulse rate in advance, position control is possible using input signals. Options are not required and up to 15 positions can be set.
  • Feed Forward Control. The motor responsiveness to changes in the speed command is improved. This is suitable for improving responsiveness to acceleration and deceleration.
  • Compatible with 16-bit high resolution analog input (FR-V5AX) and 16-bit digital input (FR-V5AH) built-in options. Operation at higher accuracies is possible.
  • Minimum setting resolution for speed command is 0.1r /min
  • Brake transistor built-in for 15kW and smaller capacities
  • Brake resistor also built-in for 5.5kW and smaller capacities
  • Remote output function. The output signal can be turned ON/OFF like a PLC’s remote output. Example: ON/OFF of the pilot lamp, etc.
  • Master-slave function (analog type). Synchronous speed operation is possible by inputting the information from the master inverter to the slave inverter.
  • Compatible with power regeneration common converter (FR-CV)
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Series V500
Phase Three Phase
Rated Amps 165 A
Enclosure Rating IP 00
Brand MITSUBISHI
Horsepower Rating 100 HP
Rated Voltage 460 V
Product Condition New with Defects or Obsolete
Output Voltage 460 V
Output Amperage Rating 165 A
HP Rating @ 150% OL 100 HP
Amp Rating @ 150% OL 165 A
Model FR-V540L-75K-NA
Height 29.13 in
Width 18.9 in
Depth 14.17 in
Product Information

MITSUBISHI V500 Series

Mitsubishi V500 Series Variable Frequency Drive (VFD)

Highlights

  • Position control by contact inputs. By setting the feed pulse rate in advance, position control is possible using input signals. Options are not required and up to 15 positions can be set.
  • Feed Forward Control. The motor responsiveness to changes in the speed command is improved. This is suitable for improving responsiveness to acceleration and deceleration.
  • Compatible with 16-bit high resolution analog input (FR-V5AX) and 16-bit digital input (FR-V5AH) built-in options. Operation at higher accuracies is possible.
  • Minimum setting resolution for speed command is 0.1r /min
  • Brake transistor built-in for 15kW and smaller capacities
  • Brake resistor also built-in for 5.5kW and smaller capacities
  • Remote output function. The output signal can be turned ON/OFF like a PLC’s remote output. Example: ON/OFF of the pilot lamp, etc.
  • Master-slave function (analog type). Synchronous speed operation is possible by inputting the information from the master inverter to the slave inverter.
  • Compatible with power regeneration common converter (FR-CV)
