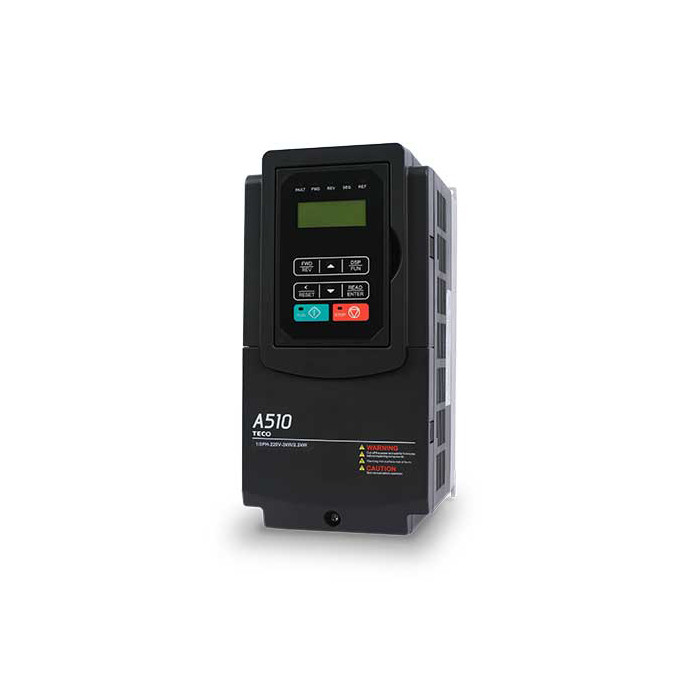

100HP 230V Teco A510 VFD, Inverter, AC Drive A510-2100-C3-U (A510-2100-C3-U)

100HP 230V Teco A510 VFD, Inverter, AC Drive A510-2100-C3-U (A510-2100-C3-U)

Brand:
TECO
Model:
A510-2100-C3-U
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • NEMA 1
  • 50/60Hz; 230V, 460V or 575V
  • LCD Display with 7 LED Indicators
  • V/Hz, Sensorless Vector
  • Closed Loop (Encoder Feedback)
  • Built-in PLC Functions
  • Programming Software Available
Write a Review

Technical Specifications

Model:
A510-2100-C3-U
Brand:
TECO
Product Condition:
New
HP Rating @ 150% OL:
100 HP
Amp Rating @ 150% OL:
283 A
Output Voltage:
230 V
Output Amperage Rating:
283 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Constant Torque / Variable Torque:
Variable Torque
Horsepower Rating:
100 HP
Rated Amps:
283 A
Rated Voltage:
230 V
Enclosure Rating:
IP 00
Series:
A510
Height:
31.10 in
Width:
18.08 in
Depth:
12.78 in

Product Information

TECO A510 Series

Standard Features

  • Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
  • Simple PLC Function Built-in
  • Advanced Regenerative Load Handling Capability
  • Conformal Coating on PC Boards
  • Flexible Input/ Output Configurations that Incorporate Normally Open or Normally Closed Signals
  • LCD Keypad that is remotely mountable
  • 0 to 400 HSpeed Range (0-1200Hselectable)
  • PID Control
  • Diagnostics Registers for Troubleshooting
  • Built-in RS485 Communications (Modbus)
  • Enhanced Design for Smoother and Quiet Motor Operation
  • Pulse Output and Pulse Follower
  • Select between Closed Loop Speed and Torque Control in Vector Mode
  • 1-40 hp NEMA 1 230V 50 hp & above Protected Chassis, 1-60 hp NEMA 1 460V & 75 hp & above Protected Chassis
  • UL, cUL, and CE Approved
Download Manual
