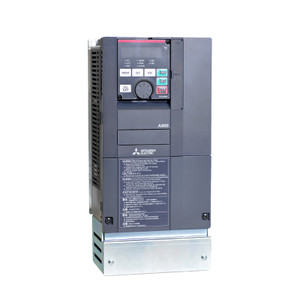

100/125HP & 75HP 230V Mitsubishi VFD, Inverter, AC Drive FR-A820-03160-1-60 (FR-A820-03160-1-60)

Brand:
MITSUBISHI
Model:
FR-A820-03160-1-60
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $11,611.00
Online Price: $9,288.80
Adding to cart… The item has been added
  • IP21 and IP55 enclosure options available
  • Built in RS-485 communication, most major communications protocols are supported
  • 24VDC control circuit power supply
  • Partitioned inverter/converter design for optimal solutions
  • Real sensorless vector control ensures faster response
  • Advanced magnetic flux vector control or V/F control
  • Energy saving functions
  • Optimum excitation control improves motor efficiency
  • IPM motors reduce energy consumption
  • Multi-language LCD parameter unit includes clock functions
  • Inverter complies with European EMC Directive
  • Global compliance

Technical Specifications

Model:
FR-A820-03160-1-60
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
60 HP
Horsepower Rating:
75 HP
Horsepower Rating:
100 HP
HP Rating @ 110% OL:
100 HP
HP Rating @ 120% OL:
100 HP
HP Rating @ 150% OL:
75 HP
HP Rating @ 200% OL:
60 HP
Rated Amps:
175 A
Amp Rating @ 110% OL:
316 A
Amp Rating @ 120% OL:
288 A
Amp Rating @ 150% OL:
215 A
Amp Rating @ 200% OL:
175 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
316 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Series:
A800
Rated Amps:
215 A
Rated Amps:
288 A
Rated Amps:
316 A
Height:
276.00 in
Width:
18.30 in
Depth:
9.80 in

Product Information

MITSUBISHI A800 Series

CT INVERTER 75HP(ND) 230V
