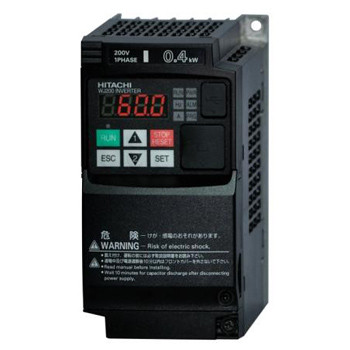

1HP & 1.5HP 230V Hitachi VFD, Inverter, AC Drive WJ200-007LF (WJ200-007LF)

1HP & 1.5HP 230V Hitachi VFD, Inverter, AC Drive WJ200-007LF (WJ200-007LF)

Brand:
HITACHI
Model:
WJ200-007LF
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $235.00
Adding to cart… The item has been added
  • High starting torque and dramatically improved speed stability thanks to advanced sensorless vector control
  • Simplified autotuning procedure
  • Easy setup and operation via standard integral keypad, optional enhanced keypad or via PC software
  • Dynamic braking transistor in all models
  • EasySequence (EzSQ) PLC-like functionality built in
  • Simple position control capability
  • Capable of driving permanent magnet as well as standard induction motors
  • Dual rated for CT/VT applications
  • New and more effective trip avoidance functions, safe-stop function and much more…
Write a Review

Technical Specifications

Model:
WJ200-007LF
Brand:
HITACHI
Product Condition:
New
Horsepower Rating:
1 HP
Horsepower Rating:
1.5 HP
HP Rating @ 120% OL:
1.5 HP
HP Rating @ 150% OL:
1 HP
Rated Amps:
5 A
Amp Rating @ 120% OL:
6 A
Amp Rating @ 150% OL:
5 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
5 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 20
Height:
2.68 in
Width:
5.04 in
Depth:
4.29 in

Product Information

HITACHI WJ200 Series

The WJ200 Series ranges from 100-400VAC and single phase input to three phase output. The WJ200 Series comes with an integrated auto-tuning function for easy sensorless vector control that realizes high starting torque of 200% or greater, suitable for a variety of applications.

Highlights

  • High starting torque and dramatically improved speed stability thanks to advanced sensorless vector control
  • Simplified autotuning procedure
  • Easy setup and operation via standard integral keypad, optional enhanced keypad or via PC software
  • Dynamic braking transistor in all models
  • EasySequence (EzSQ) PLC-like functionality built in
  • Simple position control capability
  • Capable of driving permanent magnet as well as standard induction motors
  • Dual rated for CT/VT applications
  • New and more effective trip avoidance functions, safe-stop function and much more…
Download Manual
