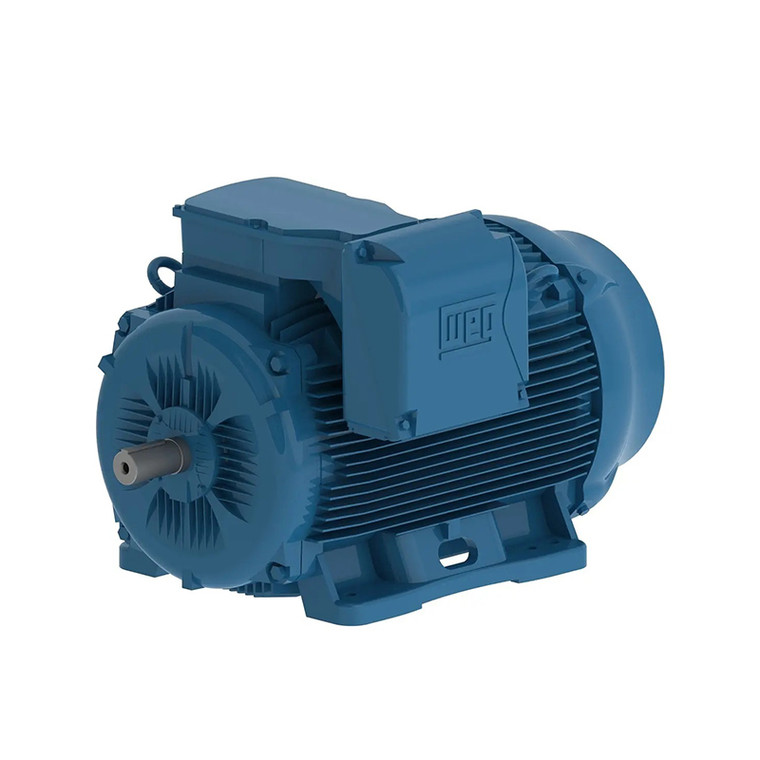

WEG, AC Motor, 09009ET3Y315S, M-W22, 125 HP, 900, 750 RPM, 315S, M, Three Phase, 460, 380-415, 660-690 V, 60 Hz (09009ET3Y315S, M-W22)

WEG, AC Motor, 09009ET3Y315S, M-W22, 125 HP, 900, 750 RPM, 315S, M, Three Phase, 460, 380-415, 660-690 V, 60 Hz (09009ET3Y315S, M-W22)

Brand:
WEG
Model:
09009ET3Y315S, M-W22
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $21,288.00
Adding to cart… The item has been added
Write a Review

Technical Specifications

Brand:
WEG
Product Condition:
New
Phase:
Three Phase
Service Factor:
1.25
Efficiency:
95%
C Dimension:
50.157
Motor Full Load Amps:
152 A
Duty Cycle:
Continuous
Motor Type:
General Purpose
Horsepower Rating:
125 HP
Synchronous RPM:
750 RPM
Synchronous RPM:
900 RPM
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
380 V
Rated Voltage:
460 V
Rated Voltage:
690 V
Construction:
Cast Iron
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz

Product Information

WEG Series

IEC TRU-METRIC MOTORS: TEFC, Foot Mount

Severe Duty is standard with all WEG W22 motors. They boast a 1.25 SF resulting in cooler operation. Construction is with high grade FC200 cast iron providing superior mechanical strength and heat dissipation. Motors are balanced to 0.08 inches per second vibration limits. Certified Class 1 Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G.
