Technical Specifications
Brand:
WEG
Product Condition:
New
Phase:
Three Phase
Service Factor:
1.25
Efficiency:
94.5%
C Dimension:
37.992
Motor Full Load Amps:
80.3 A
Duty Cycle:
Continuous
Motor Type:
General Purpose
Horsepower Rating:
75 HP
Synchronous RPM:
3000 RPM
Synchronous RPM:
3600 RPM
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
380 V
Rated Voltage:
460 V
Rated Voltage:
690 V
Construction:
Cast Iron
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Product Information

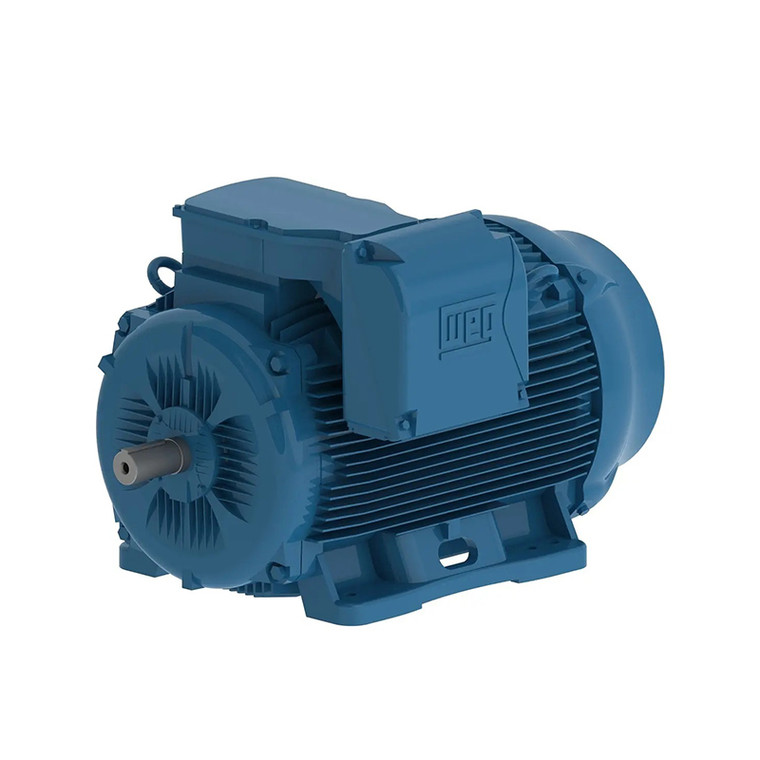

WEG Series
IEC TRU-METRIC MOTORS; Severe Duty is standard with all WEG W22 motors. They boast a 1.25 SF resulting in cooler operation. Construction is with high grade FC200 cast iron providing superior mechanical strenght and heat dissipation. Motors are balanced to 0.08 inches per second vibration limits. Certified Class 1 Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G.
