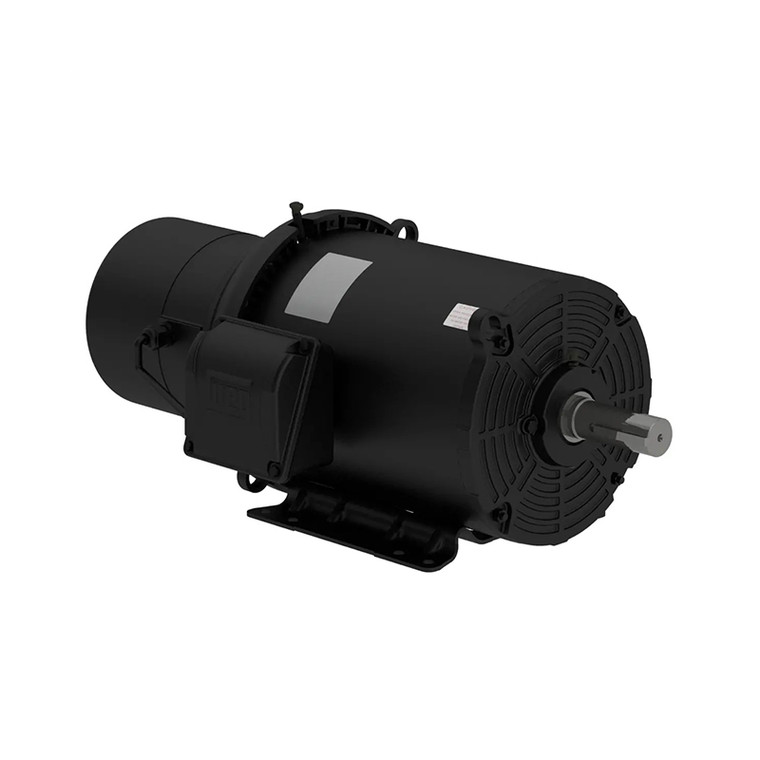

WEG, AC Motor, 02018ET3EBM256T-S, 20 HP, 1800 RPM, 256T, Three Phase, 230/460 V, 60 Hz (02018ET3EBM256T-S)

Brand:
WEG
Model:
02018ET3EBM256T-S
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $9,080.00
Adding to cart… The item has been added

Technical Specifications

Model:
02018ET3EBM256T-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
20 HP
Synchronous RPM:
1800 RPM
Frame Size:
256T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
100
Efficiency:
93%
Construction:
Rolled Steel
C Dimension:
32.007
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
24.7 A

Product Information

WEG Series

Brake Motors; WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance. They feature 1.25 service factor, NPT threaded terminal box, armature type brake and manual release.
