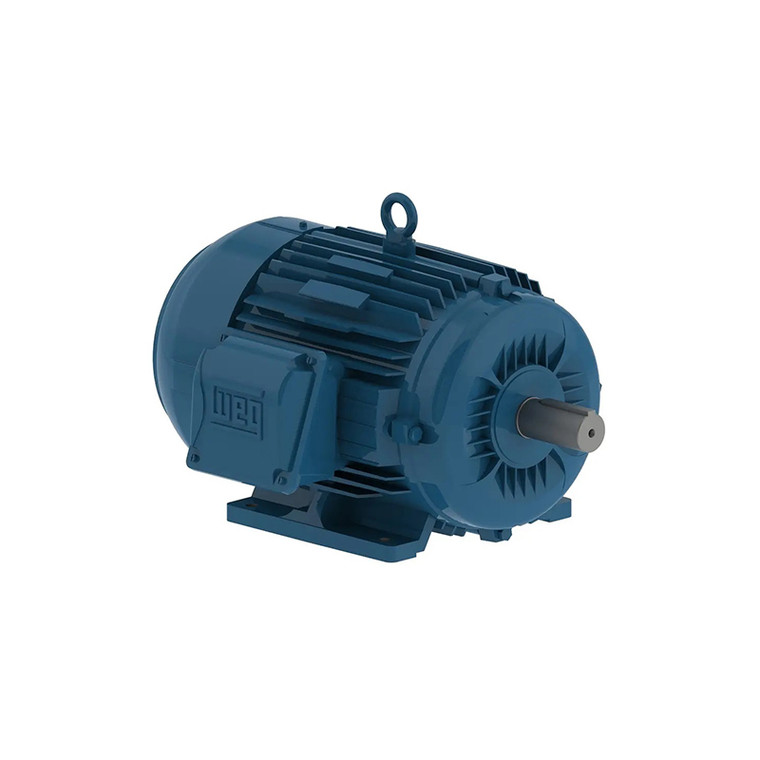

WEG, AC Motor, 01536ET3E215T-W22, 15 HP, 3600 RPM, 213, 5T, Three Phase, 230/460 V, 60 Hz (01536ET3E215T-W22)

Brand:
WEG
Model:
01536ET3E215T-W22
Condition:
New
0 Customer Reviews
In Stock
List Price:  $1,697.00
Online Price: $1,215.00
Adding to cart… The item has been added

Technical Specifications

Model:
01536ET3E215T-W22
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
15 HP
Synchronous RPM:
3600 RPM
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Efficiency:
91%
Construction:
Cast Iron
C Dimension:
19.517
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
17 A
Frame Size:
213/5T
Frame Size:
213T
Frame Size:
215T
Duty Cycle:
Continuous

Product Information

WEG Series

THREE-PHASE GENERAL PURPOSE MOTORS; Severe Duty is standard with all WEG W22 motors. They boast a 1.25 SF resulting in cooler operation. Construction is with high grade FC200 cast iron providing superior mechanical strenght and heat dissipation. Motors are balanced to 0.08 inches per second vibration limits. Certified Class 1 Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G.
