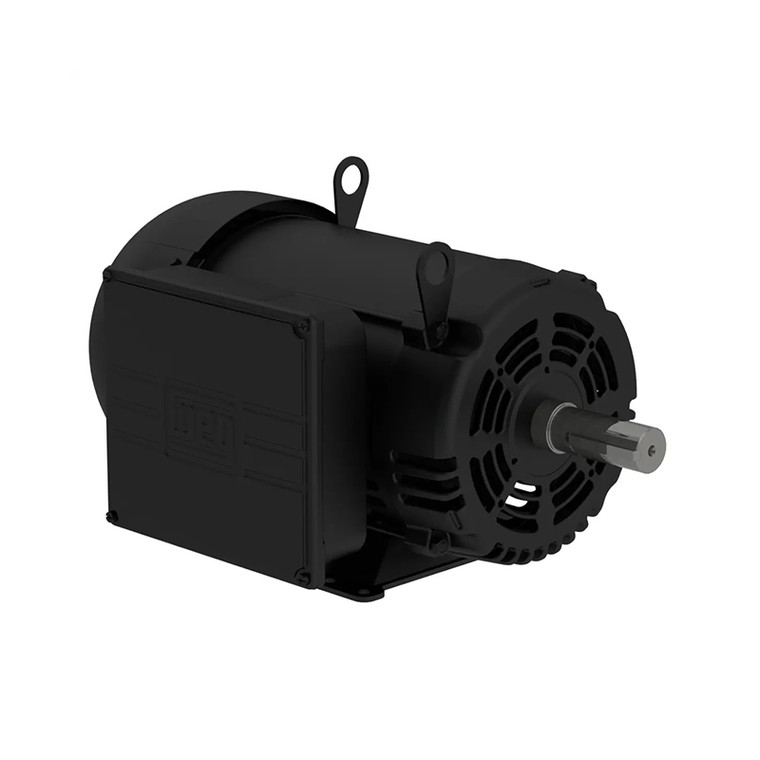

WEG, AC Motor, 01018OS1CCD215T, 10 HP, 1800 RPM, 215T, Single Phase, 208-230 V, 60 Hz (01018OS1CCD215T)

WEG, AC Motor, 01018OS1CCD215T, 10 HP, 1800 RPM, 215T, Single Phase, 208-230 V, 60 Hz (01018OS1CCD215T)

Brand:
WEG
Model:
01018OS1CCD215T
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $1,468.00
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
01018OS1CCD215T
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
10 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1720 RPM
Frame Size:
215T
Rated Supply Voltage:
208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
F
Efficiency:
85%
Construction:
Rolled Steel
C Dimension:
21.235
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
43 A

Product Information

WEG Series

SINGLE-PHASE GENERAL PURPOSE MOTORS; The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for Severe duty use.
