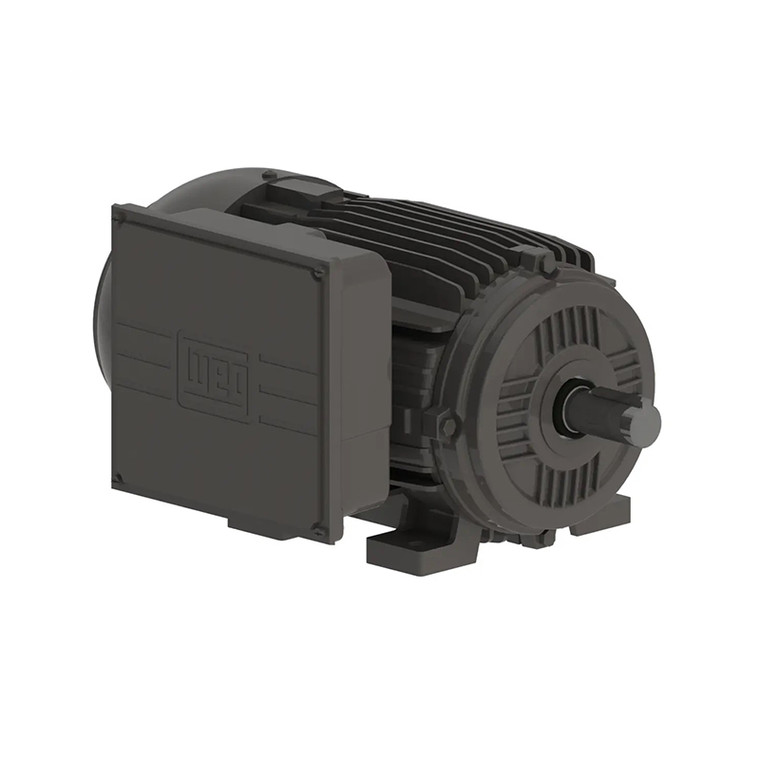

WEG, AC Motor, 00336ES1E182T, 3 HP, 3600 RPM, 182T, Single Phase, 208-230/460 V, 60 Hz (00336ES1E182T)
Technical Specifications
Model:
00336ES1E182T
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
3 HP
Synchronous RPM:
3600 RPM
Frame Size:
182T
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Single Phase
Service Factor:
1.15
Efficiency:
80%
Construction:
Cast Iron
C Dimension:
16.05
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6.8 A
Product Information
WEG Series
SINGLE-PHASE GENERAL PURPOSE MOTORS; The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for Severe duty use.
