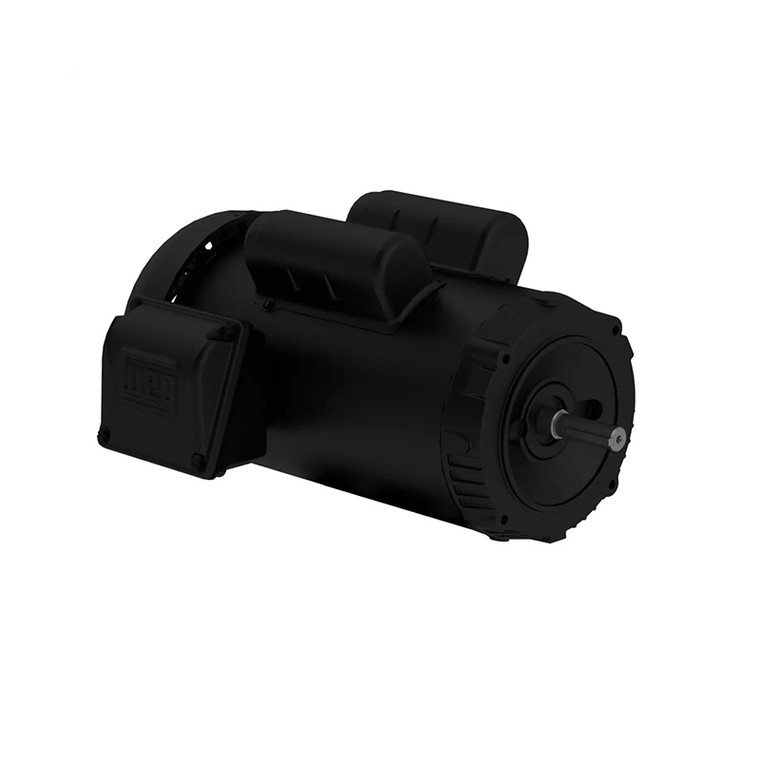

WEG, AC Motor, 00236ES1B56CFL-S, 2 HP, 3600 RPM, 56C, Single Phase, 115/208-230 V, 60 Hz (00236ES1B56CFL-S)

WEG, AC Motor, 00236ES1B56CFL-S, 2 HP, 3600 RPM, 56C, Single Phase, 115/208-230 V, 60 Hz (00236ES1B56CFL-S)

Brand:
WEG
Model:
00236ES1B56CFL-S
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $589.00
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
00236ES1B56CFL-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
2 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3495 RPM
Frame Size:
56C
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Efficiency:
77%
Construction:
Rolled Steel
C Dimension:
14.295
Mounting Type:
Footless
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
8.7 A

Product Information

WEG Series

SINGLE-PHASE GENERAL PURPOSE MOTORS; The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for Severe duty use.
