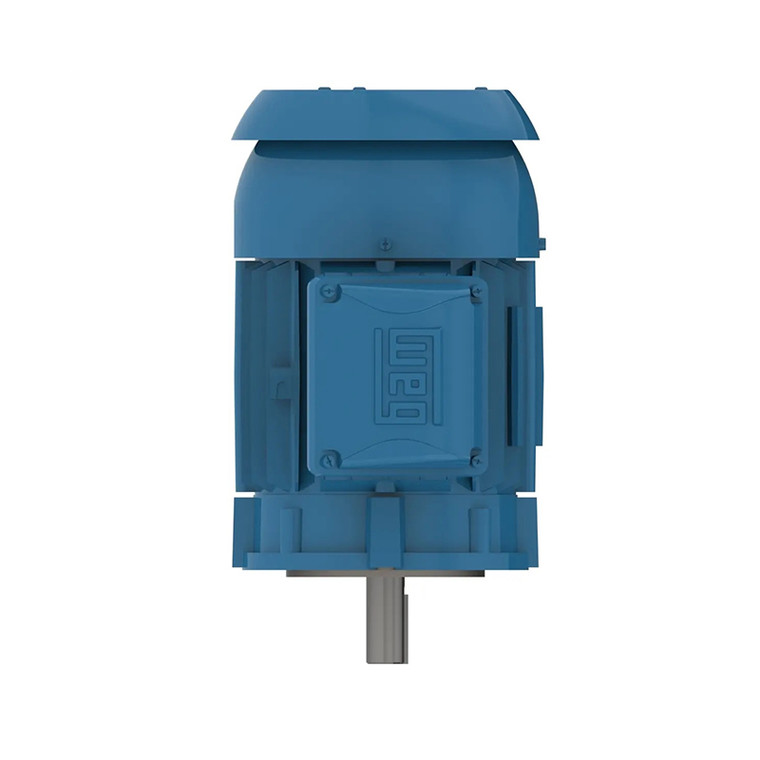

WEG, AC Motor, 00118ST3QIER143TC-W2, 1 HP, 1800 RPM, 143, 5TC, Three Phase, 460 V, 60 Hz (00118ST3QIER143TC-W2)

WEG, AC Motor, 00118ST3QIER143TC-W2, 1 HP, 1800 RPM, 143, 5TC, Three Phase, 460 V, 60 Hz (00118ST3QIER143TC-W2)

Brand:
WEG
Model:
00118ST3QIER143TC-W2
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
List Price:  $1,000.00
Online Price: $716.00
Adding to cart… The item has been added
Free shipping over $50*
Write a Review

Technical Specifications

Model:
00118ST3QIER143TC-W2
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Efficiency:
85.5%
Construction:
Cast Iron
C Dimension:
14.066
Mounting Type:
Footless
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.47 A
Frame Size:
143TC
Duty Cycle:
Continuous

Product Information

WEG Series

IEEE 841 MOTORS; Severe Duty is standard with all WEG W22 motors. They boast a 1.25 SF resulting in cooler operation. Construction is with high grade FC200 cast iron providing superior mechanical strenght and heat dissipation. Motors are balanced to 0.08 inches per second vibration limits. Certified Class 1 Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G.
