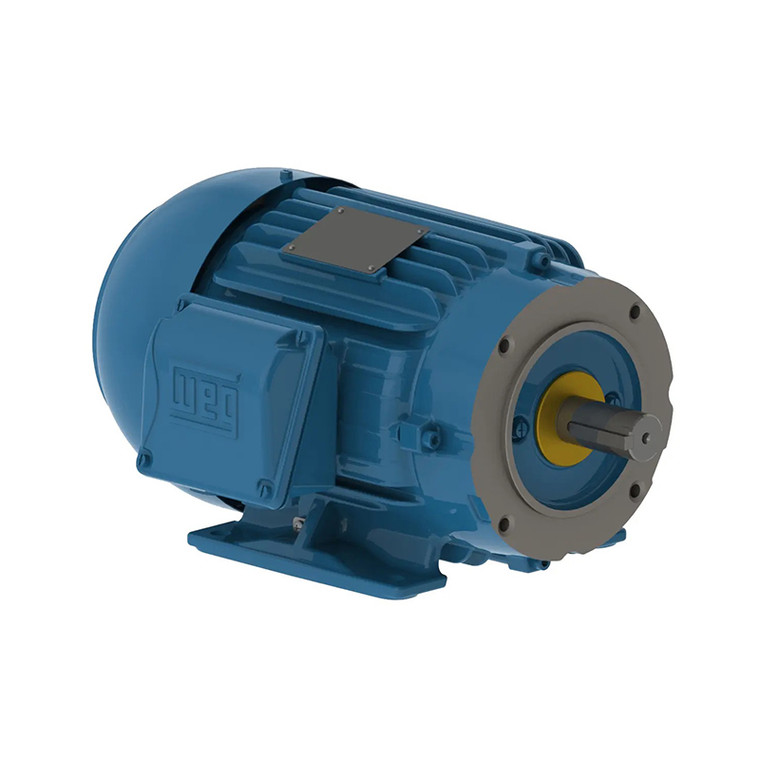

WEG, AC Motor, 00118ST3QIE143TC-W22, 1 HP, 1800 RPM, 143, 5TC, Three Phase, 460 V, 60 Hz

Brand: WEG
Model: 00118ST3QIE143TC-W22
Condition: New
Rating:
0% of 100

In stock
$972.00
Technical Specifications
Rated Input Frequency 60 Hz
Phase Three Phase
Synchronous RPM 1800 RPM
Motor Type General Purpose
Mounting Type Foot Mount
Construction Cast Iron
Motor Enclosure Type Totally Enclosed Fan Cooled (TEFC)
Brand WEG
Horsepower Rating 1 HP
Rated Voltage 460 V
Service Factor 1.25
Product Condition New
Rated Supply Voltage 460 V
Efficiency 85.5%
Model 00118ST3QIE143TC-W22
Motor Full Load Amps 1.47 A
C Dimension 13.358000
Product Information

WEG Series

IEEE 841 MOTORS: TEFC, C-Face, Foot Mount

Severe Duty is standard with all WEG W22 motors. They boast a 1.25 SF resulting in cooler operation. Construction is with high grade FC200 cast iron providing superior mechanical strength and heat dissipation. Motors are balanced to 0.08 inches per second vibration limits. Certified Class 1 Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G.
