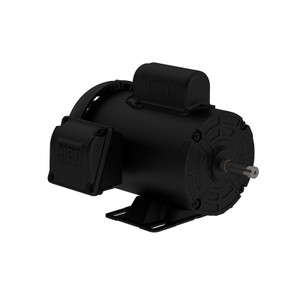

WEG, AC Motor, 00118OT1B56-S, 1 HP, 1800 RPM, 56, Single Phase, 115/208-230 V, 60 Hz (00118OT1B56-S)

Brand:
WEG
Model:
00118OT1B56-S
Condition:
New
0 Customer Reviews
In Stock
List Price:  $421.00
Online Price: $353.00
Adding to cart… The item has been added

Technical Specifications

Model:
00118OT1B56-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Frame Size:
56
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Efficiency:
82.6%
Construction:
Rolled Steel
C Dimension:
12.677
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.5 A

Product Information

WEG Series

SINGLE-PHASE GENERAL PURPOSE MOTORS; The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for Severe duty use.
